Everything you need to know about the
6×12 Double Axle – Diamond Cargo
6×12 Double Axle – Diamond Cargo
1. Technical Features Table
→ → →
| Standard Features | Diamond |
| PRICE | $4,700.00 |
| EXTERIOR METAL | .080 Polycore Exterior (Semi-screwed) |
| AXLES | 3500lb USA Made Lippert Drop Leaf Spring Axles |
| V-NOSE | V Nose (Standard) |
| ELECTRIC BRAKES | Axles w/ Electric Brakes |
| DOME LIGHT | 12V LED Dome light with switch |
| WALLS/CEILING TUBING | 1.5" x 1" steel tube in walls and ceiling |
| FLOOR TUBING | 4" steel tube main rails |
| FLOOR CROSS-MEMBERS | Floor Members 16" O.C. |
| ROOF CROSS-MEMBERS | Roof Members 16" O.C. |
| WALL CROSS-MEMBERS | Wall Members 16" O.C. |
| LIGHTS | All LED exterior lighting incl. Rear Loading Light |
| INTERIOR HEGHT | 78" (6'6") Interior Height |
| REAR DOOR | Ramp Door w/ Spring Assist & Extension Flap / Door Hold Back / 2 Rear Door Handles |
| PLUG / COUPLER (BALL) | 7-way Round Bargman Plug/ 2 5 / 16" Coupler |
| FENDERS | Aluminum fenders w/lights |
| SIDE DOOR | 32" RV-Style Side Door w/ Flush Lock |
| TIRES | ST205 15" Radial Tires |
| RIMS/WHEELS | Silver Painted Wheels |
| ROOF MATERIAL | Galvalume roof |
| STONEGUARD | 24" Stoneguard on front |
| TONGUE JACK | 2000 lb tongue jack w/ Sand Foot |
| HUBS | EZ Lube Hubs |
| THERMA-PLY | Therma-Ply Ceiling |
| WALL MATERIAL | Premium 3/8" plywood sidewalls |
| FLOOR MATERIAL | 3/4" plywood floor/undercoated |
| SIDEWALL VENTS | Plastic Sidewall Vents |
| EMPTY WEIGHT | 1800 lbs |
| LOAD CAPACITY | 5200 lbs |
| GVWR | 7000 lbs |
| TONGUE WEIGHT | 270 lbs |
2. Technical FAQ
Overall Length: 15’6″ / 186 in (Breakdown: 12′ on the Box + 3’6″ on the Tongue) 20″ on the Vnose
Overall Width: 7’6″ / 90 in (Breakdown: 6′ on the Box + 9″ on each Fender)
Overall Height: 7’7″ / 91 in (Breakdown: 6’3″ on the Box + 16″ from the ground to the box)
Overall Height (Diamond): 7’10” / 94 in (Breakdown: 6’6″ on the Box + 16″from the ground to the box)
Overall Length: 11’9″ Box (Breakdown: Subtract 3″ which counts for rear door & framing) plus 20″ on the Vnose
Overall Width: 5’8″ (Breakdown: Subtract 4″ (2″ on each side) which counts for plywood & framing)
Overall Height: 6’3″
Overall Height (Diamond): 6’6″
Width: 62″ (Breakdown: Subtract 10″ (5 on each side) which counts for plywood & framing)
Height: 69″ (Breakdown: Subtract 6″ which counts for plywood & framing)
Height (Diamond): 72″ (Breakdown: Subtract 6″ which counts for plywood & framing)
7-way Round plug
5×4.5 (5 Lug)
6 Ply
Screws are 4′ apart instead of being every 2′
It’s an asphalt undercoating paint
We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:
Click Here for More Information.
Here are examples of some of the most popular Custom Options:
– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

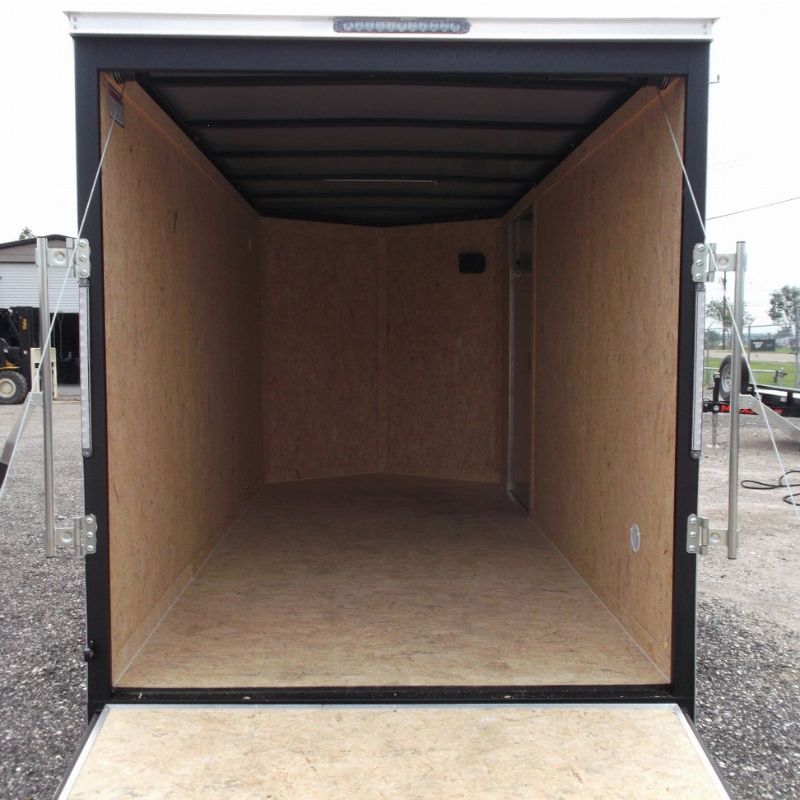

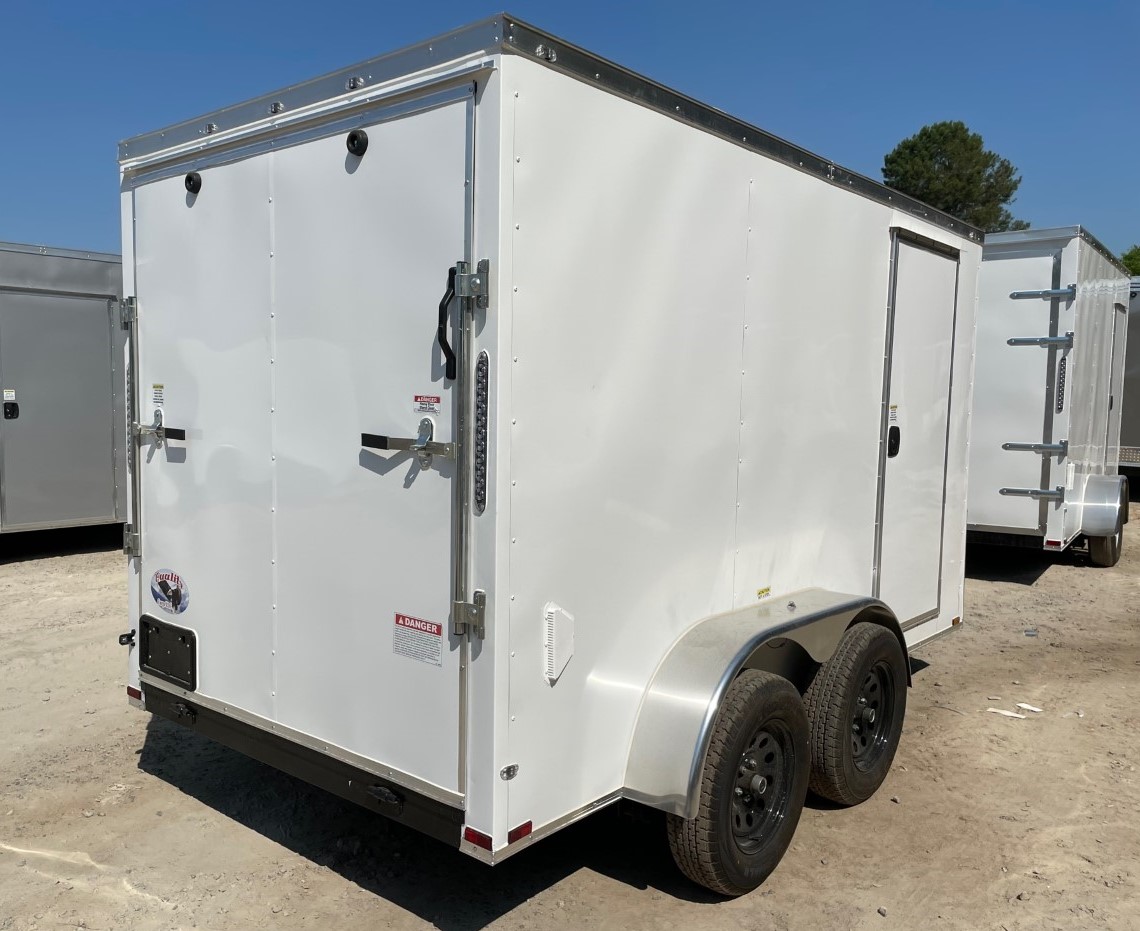

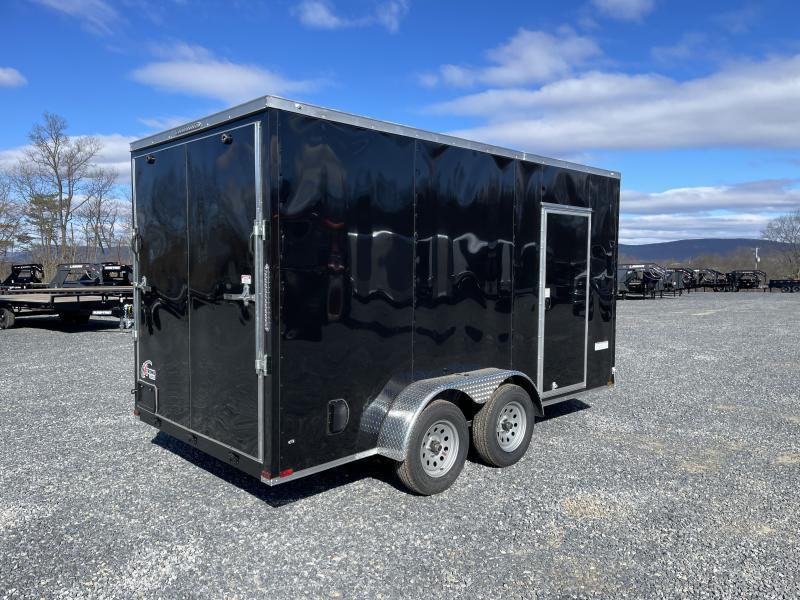

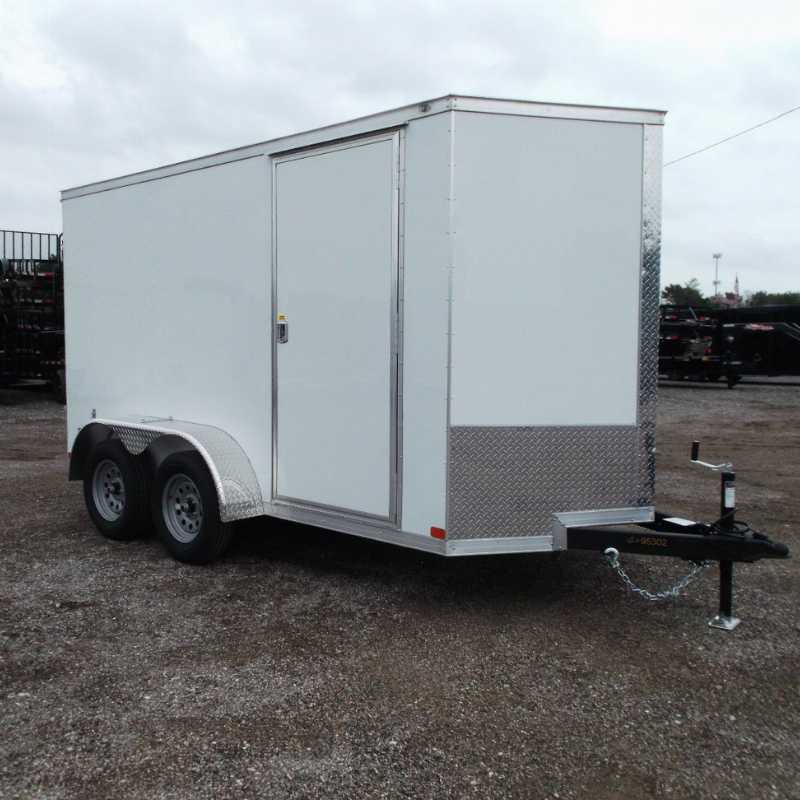

3. Sample Photos
4. Sample Video
5. Sample Colors (Click to enlarge)
6. Purchase FAQ
Click the link below for Financing Options:
https://makemytrailer.com/enclosed-trailer-financing-services/
Click the link below for Delivery Options:
https://makemytrailer.com/delivery/
30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer
Yes they are and also the reason why your trailer pick up is directly at the Factory.
We do not charge any taxes, that’s something that you pay when you register the trailer
Yes, as soon as your trailer is ready we can provide your with your VIN number.
1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier’s Check
3) Wire Transfer
Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer
It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.
Note: We do make exceptions so make sure to ask our sales team
We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements
