Everything you need to know about the 5×10 Single

from any of our top 2 manufacturers plus our helpful maintenance guide

Table of Content - 5x10 Single Axle

1. Technical Comparison Table

→ → →

Standard Features Diamond Anvil
PRICE $3,000.00 $3,260.00
EXTERIOR METAL .080 Polycore Exterior (Semi-screwed)  .080 Polycore Exterior (Semi-screwed)
AXLES  2990lb USA Made Lippert Drop Leaf spring axle  2990lb USA Made Drop Leaf spring axle
V-NOSE  V Nose (Standard) V Nose (Standard)
DOME LIGHT 12V Dome light with switch  12V Dome light with switch
WALLS/CEILING TUBING   1.5" x 1" steel tube in walls and ceiling  1.5" x 1" steel tube in walls and ceiling
FLOOR TUBING   3" steel tube main rails  3" steel tube main rails
FLOOR CROSS-MEMBERS  Floor Members 16" O.C. Floor Members  24" O.C.
ROOF CROSS-MEMBERS  Roof Members 16" O.C.  Roof Members 24" O.C.
WALL CROSS-MEMBERS  Wall Members 16" O.C.  Wall Members 16" O.C.
LIGHTS  All LED exterior lighting incl. Rear Loading Light  All LED exterior lighting
INTERIOR HEGHT  60" (5') Interior height  60" (5') Interior height
REAR DOOR  Ramp Door w/ Spring Assist & Extension Flap /(2) Rear Door Handles / Door Hold Back  Ramp Door w/ Spring Assist & Extension Flap
PLUG / COUPLER (BALL)  4-way flat plug / 2" coupler  4-way flat plug / 2" coupler
FENDERS  Aluminum fenders w/lights  Aluminum fenders w/lights
TIRES  ST205 15" Radial Tires  ST205 15" Radial Tires
RIMS/WHEELS  Silver Painted Wheels  Silver Painted Wheels
ROOF MATERIAL   Galvalume roof  Galvalume roof
STONEGUARD  24" Stoneguard on front  24" Stoneguard on front
TONGUE JACK  2000 lb tongue jack w/ Sand Foot  2000 lb tongue jack w/ Sand Foot
HUBS   EZ Lube Hubs  EZ Lube Hubs
THERMA-PLY  Therma-Ply Ceiling  ❌​
WALL MATERIAL  Premium 3/8" plywood sidewalls  Premium 3/8" plywood sidewalls
FLOOR MATERIAL  3/4" plywood floor/undercoated  3/4" plywood floor/undercoated
SIDEWALL VENTS  Plastic Sidewall Vents  Plastic Side Vents
EMPTY WEIGHT 1160 lbs 1160 lbs
LOAD CAPACITY 1830 lbs 1830 lbs
GVWR 2990 lbs 2990 lbs
TONGUE WEIGHT 147 lbs 147 lbs

2. Technical FAQ

Overall Length: 13'6" / 162 in (Breakdown: 10' on the Box + 3'6" on the Tongue) 18" on the Vnose
Overall Width: 6’6″ / 78 in (Breakdown: 5' on the Box + 9" on each Fender)
Overall Height: 6'4" / 76 in (Breakdown: 5' on the Box + 16" from the ground to the box)

Overall Length: 9'9" Box (Breakdown: Subtract 3" which counts for rear door & framing) plus 18" on the Vnose
Overall Width: 4'8" (Breakdown: Subtract 4" (2" on each side) which counts for plywood & framing)
Overall Height: 5'

Width: 50" (Breakdown: Subtract 10" (5 on each side) which counts for plywood & framing)
Height: 54" (Breakdown: Subtract 6" which counts for plywood & framing)

No it doesn’t but they're available as a custom option.



Side Note: If the combined weight of the trailer and its load approaches or exceeds 3,000 pounds, many jurisdictions require brakes on the trailer. However, a 4x6 enclosed trailer, given its size, is unlikely to reach this weight limit when fully loaded, as they typically have a lower payload capacity.



Safety Considerations



Driving Conditions: If you plan to tow your trailer in hilly or mountainous areas, or if you'll be driving in a lot of stop-and-go traffic, having electric brakes can significantly improve safety by reducing stopping distances and improving vehicle control.



Emergency Handling: Electric brakes can offer better control in emergency braking situations, reducing the risk of accidents.



Wear on Vehicle Brakes: Using a trailer with its own braking system can reduce wear and tear on your vehicle's brakes, especially important for frequent towing or heavy loads.

4-way flat plug

5×4.5 (5 Lug)

6 Ply

Screws are 4' apart instead of being every 2'

It's an asphalt undercoating paint

We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:

Click Here for More Information.

Here are examples of some of the most popular Custom Options:

– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

3. Sample Photos

4. Sample Video

5. Sample Colors (click to enlarge)

6. Purchase FAQ

Click the link below for Financing Options:

https://makemytrailer.com/enclosed-trailer-financing-services/

Click the link below for Delivery Options:

https://makemytrailer.com/delivery/

30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer

Yes they are and also the reason why your trailer pick up is directly at the Factory

We do not charge any taxes, that's something that you pay when you register the trailer

Yes, as soon as your trailer is ready we can provide your with your VIN number.



1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier's Check
3) Wire Transfer

Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer

It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.



Note: We do make exceptions so make sure to ask our sales team

We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements

7. Create a Quote

8. Still Got Questions?

We try to cover all the basic questions so our customers can make an informed and smart purchase, but if we missed any information that prevents you from moving forward please feel free to email, chat or call us, our awesome and knowledgeable sales team will be happy to help.

Have you recently invested in an enclosed cargo trailer, or are you looking to maximize the lifespan and efficiency of your current one? Our comprehensive PDF guide is your ultimate companion to mastering the art of trailer maintenance!

Safeguard Your Investment:

10 Smart Ways to Prevent Trailer Theft!

Useful Article About:

5 x 10 enclosed cargo trailer by MakeMyTrailer.com, Built to Last!

5 x 10 enclosed cargo trailer



Introduction: Navigating the World of 5×10 Enclosed Trailers

When the time comes to invest in a new or used trailer, the allure of a 5×10 enclosed model is undeniable. Offering a blend of quality, affordability, and versatility, these trailers cater to a broad spectrum of needs, from hauling goods to providing extra storage space.

The Appeal of High-Quality 5 x 10 enclosed cargo trailer options

High-quality trailers come with the promise of durability and reliability. However, the market also presents well-maintained used options that offer similar benefits at a fraction of the cost, making them an attractive alternative for savvy buyers. This goes for options such as single axle, side door, coupler, and other trailer dealer features.

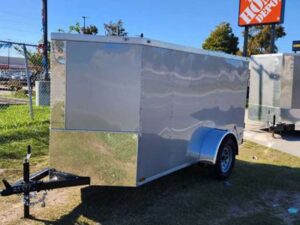

5' x 10' enclosed trailer

Finding Value in 5′ x 10′ enclosed trailer choices

The market for 5×10 enclosed trailers is vibrant, with numerous offers that strike a balance between price and performance. Identifying the best deals requires diligent research and a keen eye for value with the 5×10 single axle and the cargo trailers for sale available such as the 2022 ttc 5×10 single axle and ttc 5×10 single axle cargo.

The Importance of Thorough Inspection with day financing

Before committing to a purchase, conducting a thorough inspection of the trailer is crucial. This step ensures that you’re aware of any potential issues and can make an informed decision based on the trailer’s condition. The goal is to always get the best deals with utility trailers such as the 5×10 enclosed cargo trailer and equipment trailers like dump trailers, and 5×10 cargo. Keep following new 5×10 cargo trailer releases to find out what options to consider.

The Variety of Available 5 by 10 enclosed trailer options

The variety of 5×10 enclosed trailers on the market is vast, encompassing everything from car haulers to vending and living quarter trailers. Each type serves a specific purpose, highlighting the importance of matching the trailer to your unique needs. Always look fr features such as ramp door options, door grab handles, road built though, also parts or equipment that you want to consider with great financing options.

5 by 10 enclosed trailer

Leveraging Classified Ads to fit your needs with single axle and tandem axle

Classified ads are a treasure trove of information, offering insights into the condition and pricing of used trailers. These listings can be an excellent resource for finding a trailer that meets your criteria.

5 x 10 enclosed trailer

The Benefit of Sales and Promotions for the enclosed trailer 5 x 10

Sales and promotions present an opportunity to acquire a high-quality trailer at a reduced cost. Keeping an eye out for these deals can lead to significant savings on your purchase.

5 10 enclosed trailer

Choosing the Right 5×10 Trailer with item location

Determining the best 5×10 enclosed trailer for your needs involves evaluating various factors, including condition, price, and intended use. Making the right choice can enhance your hauling capabilities and overall satisfaction for a good selection of motorcycle trailers and general haulers.

The Popularity of the 5×10 V Nose Trailer

The 5×10 v nose enclosed trailer is renowned for its design and functionality, offering additional space and improved aerodynamics. This model stands out as a top choice for those in search of a compact yet efficient trailer. All parts and components should be of high quality to have a good experince. Be sure to call us for a shipping quote. Free delivery occurs in some cases depending on the trailer price.

Seeking Feedback and Reviews for the 5 x 10 enclosed trailer

Online feedback and customer reviews are invaluable resources when shopping for a trailer. These insights can guide you toward trailers that have proven reliable and satisfactory to other buyers.

The Advantages of a Compact Trailer

Compact trailers like the 5×10 model offer ease of maneuverability and storage, making them an ideal choice for those with limited space or who frequently navigate tight spaces. Consider destination charges when looking for a trailer in areas out of town.

enclosed trailer 5 x 10

Exploring Diverse Brands and Models for the 5 10 enclosed trailer

The market boasts a wide array of brands known for their quality and innovation. Exploring these options allows you to compare features and prices to find the trailer that best suits your needs. Always remember that taxes may apply and fees are extra in most cases.

The Case for Used Trailers

Opting for a used 5×10 enclosed trailer can be a wise decision, particularly if the trailer has been well-maintained. These trailers can provide the same benefits as new models at a more accessible price point. Just consider all specifications to learn for your needs and projects. We always ensure the best customer experience with cost of acceptance and proper fees and incentives.

Conducting Comprehensive Research

Comprehensive research is the cornerstone of finding the perfect trailer. It involves comparing models, reading reviews, and examining the trailer in person to ensure it meets your expectations. We have great financing offers and tailored offerings that come with fast and efficient monthly payment estimates and annual percentage rate options with all our trailer offers.

Making an Informed Decision

The process of selecting a 5×10 enclosed trailer should be approached with care and consideration. Weighing all available information ensures that your final decision is informed and tailored to your specific hauling needs with models such as the 5×10 v nose enclosed trailer. Keep in mind where the trailer is located when looking to reserve trailer online. Always take the time to explore our cargo trailer options for the best outcome. Remember that prices do not include taxes and we only have the best selection picked.

Conclusion: Securing Your Ideal 5×10 Enclosed Trailer

In the quest for the perfect 5 x 10 enclosed trailer for sale near me or 5 x 10 enclosed trailer used, understanding your needs, conducting thorough research, and carefully inspecting potential purchases are key steps to success. Whether new or used, the right trailer can significantly enhance your ability to transport goods securely and efficiently, proving to be a valuable asset for personal or business use.
