Make My Trailer

Everything you need to know about the

8.5×28 Double Axle – South Georgia

1. Technical Features Table

→ → →

Standard FeaturesSouth Georgia
PRICE$8,615.00
EXTERIOR METALWhite or Black metal exterior (.080) /Screwed metal exterior
AXLES5200lb spring axles with 4" drop
V-NOSE V-Nose with vertical ATP trim
ELECTRIC BRAKES Axles w/ Electric Brakes
DOME LIGHT(2) 12V Dome lights with switch
WALLS/CEILING TUBING 1x1" steel tube in walls and ceiling
FLOOR TUBING DOUBLE 6" I-Beam Main Rails
FLOOR CROSS-MEMBERS16" OC Floor Members
ROOF CROSS-MEMBERS24" OC Roof Members
WALL CROSS-MEMBERS16" OC Wall Members
LIGHTS LED Exterior Lights / LED Strip tail lights
INTERIOR HEIGHT6'6" (78") Interior Height
REAR DOOR Rear Ramp with spring Assists & Extension Flap
PLUG / COUPLER (BALL)7-way Round elec. Plug / 2 5 / 16"coupler.
FENDERSAluminum fenders w/lights

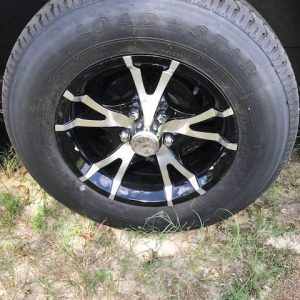

TIRES225-15 Radial tires
SIDE DOOR36" RV-Style Side Door w/ Flush Lock
ATPATP In Stepwell
RIMS/WHEELSSilver Mod Wheels
ROOF MATERIAL Galvalume roof
STONEGUARD24" Stoneguard on front
TONGUE JACK2000 lb tongue jack
HUBS EZ Lube Hubs
THERMA-PLY❌​
WALL MATERIALPremium 3/8" plywood sidewalls
FLOOR MATERIAL3/4" plywood floor/Painted Underneath
VENTSNon-powered roof vent
DRINGS(4) floor D-rings
BEAVERTAILBeavertail floor in rear
TONGUE❌​
EMPTY WEIGHT4200 lbs
LOAD CAPACITY6200 lbs
GVWR10400 lbs
TONGUE WEIGHT630 lbs

2. Technical FAQ

What’s the EXTERNAL trailer length, width and height on the 8.5x28?

Overall Length: 31’6″ / 378 in (Breakdown: 28′ on the Box + 3’6″ on the Tongue) 20″ on the Vnose
Overall Width: 8’6″/ 102 in (Breakdown: 8’6″ on the Box)
Overall Height ( Diamond ): 8’4″ / 100 in (Breakdown: 7′ on the Box + 16″from the ground to the box)
Overall Height (Anvil): 7’10” / 94 in (Breakdown: 6’6″ on the Box + 16″from the ground to the box)

What’s the INTERNAL trailer length, width and height on the 8.5x28?

Overall Length: 27’9″ Box (Breakdown: Subtract 3″ which counts for rear door & framing) plus 20″ on the Vnose
Overall Width: 8′ Wall to Wall (Breakdown: Subtract 3″ (each wall) which counts for framing & Plywood)
Width Between Wheel Boxes: 81 inches (Breakdown: Subtract 7.5″ (each side) which counts for wheel boxes
Overall Height ( Diamond ): 7′
Overall Height (Anvil): 6’6″

What are the Rear Door Entry Measurements on the 8.5x28?

Width: 90″ (Breakdown: Subtract 12″ (6 on each side) which counts for plywood & framing)
Height ( Diamond ): 78″ (Breakdown: Subtract 6″ which counts for plywood & framing)
Height (Anvil): 72″ (Breakdown: Subtract 6″ which counts for plywood & framing)

What electric hookup do I need for my trailer lights?

7-way Round plug

What is the bolt pattern for the wheels?

5×4.5 (5 Lug)

What is your tire ply rating?

5200 lb Axles: 8 Ply
6000 lb Axles: 10 Ply

What is semi screw less?

Screws are 4′ apart instead of being every 2′

What paint do you typically use for underneath the plywood?

It’s an asphalt undercoating paint

Do you need HELP selecting your Custom Options?

We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:

Click Here for More Information.

Here are examples of some of the most popular Custom Options:

– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

3. Sample Photos

4. Sample Video

5. Sample Colors (Click to enlarge)

6. Purchase FAQ

Is there Financing available?

Click the link below for Financing Options:
https://makemytrailer.com/enclosed-trailer-financing-services/

Is there Delivery available?

Click the link below for Delivery Options:
https://makemytrailer.com/delivery/

What Paperwork comes with my Trailer?

30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer

Are your prices Factory Direct?

Yes they are and also the reason why your trailer pick up is directly at the Factory.

Do we Charge Taxes?

We do not charge any taxes, that’s something that you pay when you register the trailer

When can I get my VIN number?

Yes, as soon as your trailer is ready we can provide your with your VIN number.

How can I pay my Deposit?

1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier’s Check
3) Wire Transfer

What happens after the Deposit is paid?

Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer

How long does our production team takes to the build your trailer?

It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.

Note: We do make exceptions so make sure to ask our sales team

Do I get any updates on my order?

We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements

Buy Now

By clicking Buy Now, you will be redirected to our secure PayPal checkout page. A deposit is required to reserve the standard version of this trailer size. The remaining balance, including any selected options or upgrades (such as A/C or insulation), will be due at pickup or delivery. Final price may vary depending on manufacturer and features. Please contact us to confirm details before completing your order.

7. Need a Quote?

SGC

Have you recently invested in an enclosed cargo trailer, or are you looking to maximize the lifespan and efficiency of your current one? Our comprehensive PDF guide is your ultimate companion to mastering the art of trailer maintenance!

Safeguard Your Investment:

10 Smart Ways to Prevent Trailer Theft!

Useful Article About:

Premium 8.5x28 Double Axle Trailers for Sale in South Georgia: Your Local Source

For business owners, contractors, and serious hobbyists across South Georgia, the need for a reliable, high-capacity hauling solution is non-negotiable. Transporting heavy equipment, valuable inventory, or recreational vehicles requires more than just space; it demands strength, security, and durability. The search for the perfect enclosed cargo trailer often leads to a specific size that balances significant capacity with manageable towing: the 8.5×28 double axle trailer. This article is your definitive guide to understanding why this model is the superior choice and how finding a premium version from a local Douglas, Georgia source provides an unmatched advantage in quality, service, and long-term value.

8.5x28 enclosed trailer for sale

Introduction: Discovering Your Ultimate Hauling Solution in South Georgia

The Demand for Heavy-Duty, Versatile Trailers

In a region driven by agriculture, construction, and thriving small businesses, the demand for heavy-duty trailers is constant. Professionals need a dependable way to move tools, materials, and products securely and efficiently. A standard trailer often falls short, lacking the structural integrity or the enclosed protection required for valuable cargo. This creates a clear need for an enclosed trailer that is not just large, but built to withstand the rigors of daily commercial use and protect assets from the elements.

Why an 8.5×28 Double Axle Trailer is the Smart Choice

The 8.5×28 enclosed trailer stands out as an exceptionally smart choice. Its 8.5-foot width provides ample interior space for wide equipment or palletized goods, while the 28-foot length offers substantial volume for large loads or mobile workshop setups. The double axle configuration is the key to its capability, providing superior stability, higher weight capacity, and enhanced safety on the road. This combination makes it the ideal platform for serious hauling without moving into the commercial semi-trailer category.

Your Local South Georgia Advantage: More Than Just a Sale

Purchasing a trailer of this caliber is a significant investment. Sourcing it locally in South Georgia offers distinct advantages over anonymous online sellers or distant superstores. A local dealer provides hands-on access to the product, personalized guidance based on regional needs, and reliable after-sale support. It’s about building a relationship with an expert who understands the local terrain and business landscape, ensuring you get the right trailer for the job.

Defining “Premium”: What Sets Our 8.5×28 Trailers Apart from the Rest

The word “premium” isn’t just a label; it’s a promise of superior engineering, materials, and craftsmanship. While many trailers may look similar, the difference lies in the details that contribute to a longer lifespan, better performance, and greater peace of mind. A premium 8.5×28 enclosed cargo trailer is an investment in reliability that pays dividends through years of dependable service.

Superior Construction and Frame Integrity for Unmatched Durability

The foundation of any great trailer is its frame. Our premium models feature heavy-duty steel tube main frames and crossmembers, engineered to resist flexing and twisting under heavy loads. Unlike weaker C-channel or I-beam frames, a full-tube construction provides exceptional strength and rigidity. Wall and roof studs are spaced closer together, typically 16 inches on-center, creating a robust cage that maintains its shape and protects your cargo during transit.

Advanced Exterior Design for Protection and Professionalism

A trailer’s exterior is its first line of defense. Our premium trailers utilize thicker, more durable aluminum sheathing (often .030 or thicker) that resists dents and punctures better than standard panels. A one-piece aluminum or Galvalume roof eliminates seams, a common point of failure for leaks. Furthermore, thoughtful exterior details like screwless or semi-screwless designs not only provide a clean, professional look perfect for business branding but also reduce potential rust points and improve aerodynamics.

High-Performance Axles, Tires, and Braking Systems for Safety and Reliability

What’s underneath the trailer is critical for safety. Our 8.5×28 models are equipped with robust, tandem 5,200 lb or 7,000 lb rated axles to handle substantial weight. High-quality radial tires are standard, offering better heat dissipation and a longer lifespan than cheaper bias-ply alternatives. Critically, every premium double axle trailer includes Electric Brakes on both axles, providing controlled, reliable stopping power essential for safely managing a heavy, fully-loaded trailer.

Thoughtful Interior Finishing and Flooring for Usability and Longevity

The interior of a premium cargo trailer is built for work. Floors and walls are constructed from high-grade ¾-inch and ⅜-inch plywood, respectively, providing a solid surface for securing cargo and mounting equipment. These materials resist wear and moisture far better than lower-grade alternatives. The interior is designed to be a functional workspace, with options for durable flooring covers, finished walls and ceilings, and integrated tie-down systems.

Essential Features: Enhancing Functionality, Security, and Ease of Use

Beyond the core construction, a premium enclosed trailer is defined by features that make it easier, safer, and more efficient to use. These elements are designed with the user experience in mind, turning a simple box on wheels into a sophisticated tool for transport and work. Each feature is carefully selected to add tangible value, whether you’re loading a classic car or setting up a mobile command center.

Secure Access and Effortless Loading/Unloading Solutions

Effortless access is paramount. Our trailers feature a robust, spring-assisted rear ramp door, making it easy to load wheeled equipment, from mowers and motorcycles to scissor lifts. A ramp extension flap ensures a smooth transition from the ground to the trailer floor. For quick access, a 36-inch or 48-inch RV-style side door with a secure bar lock provides a convenient entry and exit point without needing to lower the main ramp.

Enhanced Visibility and Modern LED Lighting

Superior visibility is a critical safety feature. All our premium trailers come standard with a full suite of brilliant LED exterior lights, including brake lights, turn signals, and clearance markers. These lights are brighter, last longer, and consume less power than traditional incandescent bulbs. Inside, strategically placed dome lights provide ample illumination, ensuring you can safely work and organize your cargo day or night.

Intelligent Cargo Management and Interior Comfort Solutions

A trailer’s utility is maximized by its ability to secure cargo effectively. Our models include multiple D-ring tie-downs welded directly to the frame for maximum strength. This allows for versatile and secure anchoring of vehicles, equipment, and other goods. To enhance comfort and usability, features like a roof vent help regulate temperature and airflow, preventing heat buildup and managing fumes when transporting fuel-powered machinery.

Tailoring Your Premium Trailer: Customization and Versatility for South Georgia Needs

One of the most significant advantages of choosing a premium trailer from a dedicated source is the ability to create a Custom trailer tailored to your exact needs. An 8.5×28 enclosed trailer is an incredibly versatile platform, but its true potential is unlocked through thoughtful customization. From specialized interiors for contractors to reinforced setups for motorsports enthusiasts, the possibilities are extensive.

Adaptability for Diverse Professional and Personal Applications

The 8.5×28 size is a perfect fit for a wide range of applications in Georgia. Landscaping companies can create a mobile workshop with tool racks and mower storage. Construction contractors can secure valuable equipment and materials on the job site. Motorsports enthusiasts can configure it as a dedicated Motorcycle Trailer or car hauler, complete with cabinetry and living quarters. Its adaptability makes it a sound investment for nearly any hauling requirement.

Popular Premium Options and Accessories to Maximize Utility

We offer a vast array of options to enhance your trailer. Popular upgrades include increasing the interior height for taller vehicles, adding an electrical package with outlets and overhead lighting, installing insulation and finished interior walls, and upgrading to aluminum wheels. Other functional additions include ladder racks, concession doors, custom shelving, and specialized flooring like rubber coin or aluminum tread plate.

Our Commitment to Quality: Brands and Manufacturing Standards

We partner with reputable manufacturers who share our commitment to excellence. Brands like South Georgia Cargo are known for their robust construction and attention to detail. Every trailer for sale on our lot is built to meet or exceed industry standards, ensuring that your investment is backed by proven manufacturing practices, high-quality materials, and a commitment to building a durable, long-lasting product.

Why Choose Your Local South Georgia Source? Beyond Just a Trailer Sale

In an age of endless online listings, the value of a trusted local partner cannot be overstated. When you purchase from a local dealer in Douglas, Georgia, you’re getting more than just a piece of equipment; you’re gaining a resource dedicated to your success and satisfaction. This local connection provides tangible benefits before, during, and long after the sale.

Unparalleled Local Expertise and Personalized Service You Can Trust

Our team lives and works in South Georgia. We understand the local economy, the typical hauling challenges, and the specific needs of businesses in our community. This expertise allows us to provide tailored recommendations, ensuring you don’t just buy a trailer, but the right trailer. We take the time to discuss your needs and guide you through the available options and specifications.

A Seamless Buying Experience: From Inquiry to Ownership

We strive to make the purchasing process straightforward and transparent. From your initial inquiry to the moment you tow your new trailer off the lot, our focus is on customer satisfaction. We offer clear Pricing, detailed walk-throughs of each model, and assistance with all necessary paperwork. Our goal is to provide a hassle-free experience built on trust and clear communication.

Long-Term Value and Comprehensive After-Sale Support

Our relationship doesn’t end when you drive away. As a local dealer, we are here to provide long-term support. Whether you need routine maintenance, repairs, or want to add new features down the road, you have a reliable, accessible partner. This local support network is invaluable for keeping your trailer in peak condition and minimizing any potential downtime for your business or hobby.

Investing in Quality: Pricing, Value, and Next Steps

Making the decision to invest in a premium 8.5×28 double axle trailer is a strategic choice for your future hauling needs. It’s about looking beyond the initial price tag to understand the total cost of ownership and the long-term value that quality construction and local support provide.

Understanding the Long-Term Value of a Premium Investment

A premium enclosed cargo trailer holds its value better, requires fewer repairs, and provides a more reliable service life than a budget alternative. The superior frame, thicker exterior, and high-performance components mean less downtime and greater peace of mind. This durability translates directly into a better return on your investment over the life of the trailer.

Transparent Pricing and Flexible Purchase Options

We believe in transparent Pricing. The cost of a trailer is determined by its specifications, features, and the quality of its components. We provide clear, itemized quotes so you know exactly what you’re paying for. We can also discuss flexible purchasing and financing options to help make your investment more manageable.

Ready to Find Your Premium Trailer? Contact Us Today!

If you are ready to experience the difference a premium trailer can make, we invite you to contact us or visit our location in Douglas, Georgia. Our team is prepared to answer your questions, show you our inventory, and help you configure the perfect hauling solution for your needs.

The Demand for Heavy-Duty, Versatile Trailers in the Region

As we’ve discussed, the economic landscape of South Georgia necessitates equipment that is both versatile and tough. From agriculture to motorsports, the demand for a reliable, enclosed hauling solution is undeniable, reinforcing the need for a well-built trailer that can handle diverse tasks with ease.

8.5 x 28 enclosed trailer for sale

Why an 8.5×28 Double Axle Trailer is the Smart Choice for Serious Hauling

Ultimately, the 8.5×28 double axle trailer stands as the intelligent choice for those who are serious about their cargo. Its blend of immense capacity, road stability, and protective enclosure offers a level of utility that smaller, less robust trailers simply cannot match, making it the definitive tool for demanding jobs.
