Everything you need to know about the

7x20 Double Axle - Anvil Cargo

1. Technical Features Table

→ → →

Standard FeaturesAnvil
PRICE$6,670.00
EXTERIOR METAL.080 Polycore Exterior (Semi-screwed)
AXLES3500lb USA Made Drop Leaf Spring Axle
V-NOSE V Nose (Standard)
ELECTRIC BRAKES  Axles w/ Electric Brakes
DOME LIGHT12V Dome light with switch
WALLS/CEILING TUBING 1.5" x 1" steel tube in walls and ceiling
FLOOR TUBING 6" steel tube main rails
FLOOR CROSS-MEMBERSFloor Members 16" O.C.
ROOF CROSS-MEMBERSRoof Members 24" O.C.
WALL CROSS-MEMBERSWall Members 16" O.C.
LIGHTS All LED exterior lighting
INTERIOR HEGHT75" (6'3") Interior height
REAR DOOR Rear Ramp Door w/ Spring Assist & Extension Flap
LUG / COUPLER (BALL)7-way round plug / 2 5 / 16" coupler
FENDERSAluminum fenders w/lights
SIDE DOOR32" RV-Style Side Door w/ Flush Lock & Hold Open
TIRESST205 15" Radial Tires
RIMS/WHEELSSilver Painted Wheels
ROOF MATERIAL Galvalume roof
STONEGUARD24" Stoneguard on front
TONGUE JACK2000 lb tongue jack w/ Sand Foot
HUBS EZ Lube Hubs
THERMA-PLY
WALL MATERIALPremium 3/8" plywood sidewalls
FLOOR MATERIAL3/4" plywood floor/undercoated
SIDEWALL VENTSPlastic Side Vents
EMPTY WEIGHT3000 lbs
LOAD CAPACITY4000 lbs
GVWR7000 lbs
TONGUE WEIGHT396 lbs

2. Technical FAQ

What’s the EXTERNAL trailer length, width and height on the 7x20?

Overall Length: 23’6″ / 282 in (Breakdown: 20′ on the Box + 3’6″ on the Tongue) 20″ on the Vnose
Overall Width: 8’6″ / 102 in (Breakdown: 7′ on the Box + 9″ on each Fender)
Overall Height ( Diamond ): 8’4″ / 100 in (Breakdown: 7′ on the Box + 16″ from the ground to the box)
Overall Height (Anvil): 7’7″ / 91 in (Breakdown: 6’3″ on the Box + 16″ from the ground to the box)

What’s the INTERNAL trailer length, width and height on the 7x20?

Overall Length: 19’9″ Box (Breakdown: Subtract 3″ which counts for rear door & framing) plus 20″ on the Vnose
Overall Width: 6’8″ (Breakdown: Subtract 4″ (2″ on each side) which counts for plywood & framing)
Overall Height ( Diamond ): 7′
Overall Height (Anvil): 6’3″

What are the Rear Door Entry Measurements on the 7x20?

Width: 74″ (Breakdown: Subtract 10″ (5 on each side) which counts for plywood & framing)
Height ( Diamond ): 78″ (Breakdown: Subtract 6″ which counts for plywood & framing)
Height (Anvil): 69″ (Breakdown: Subtract 6″ which counts for plywood & framing)

What electric hookup do I need for my trailer lights?

7-way Round plug

What is the bolt pattern for the wheels?

5×4.5 (5 Lug)

What is your tire ply rating?

6 Ply

What is semi screw less?

Screws are 4′ apart instead of being every 2′

What paint do you typically use for underneath the plywood?

It’s an asphalt undercoating paint

Do you need HELP selecting your Custom Options?

We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:

Click Here for More Information.

Here are examples of some of the most popular Custom Options:

– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

3. Sample Photos

4. Sample Video

5. Sample Colors (Click to enlarge)

6. Purchase FAQ

Is there Financing available?

Click the link below for Financing Options:
https://makemytrailer.com/enclosed-trailer-financing-services/

Is there Delivery available?

Click the link below for Delivery Options:
https://makemytrailer.com/delivery/

What Paperwork comes with my Trailer?

30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer

Are your prices Factory Direct?

Yes they are and also the reason why your trailer pick up is directly at the Factory.

Do we Charge Taxes?

We do not charge any taxes, that’s something that you pay when you register the trailer

When can I get my VIN number?

Yes, as soon as your trailer is ready we can provide your with your VIN number.

How can I pay my Deposit?

1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier’s Check
3) Wire Transfer

What happens after the Deposit is paid?

Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer

How long does our production team takes to the build your trailer?

It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.

Note: We do make exceptions so make sure to ask our sales team

Do I get any updates on my order?

We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements

Buy Now

By clicking Buy Now, you will be redirected to our secure PayPal checkout page. A deposit is required to reserve the standard version of this trailer size. The remaining balance, including any selected options or upgrades (such as A/C or insulation), will be due at pickup or delivery. Final price may vary depending on manufacturer and features. Please contact us to confirm details before completing your order.

7. Need a Quote?

Have you recently invested in an enclosed cargo trailer, or are you looking to maximize the lifespan and efficiency of your current one? Our comprehensive PDF guide is your ultimate companion to mastering the art of trailer maintenance!

Safeguard Your Investment:

10 Smart Ways to Prevent Trailer Theft!

Useful Article About:

7x20 Double Axle Anvil Cargo Trailers: In Stock & Ready for Work

Introduction: Your Immediate Solution for Serious Hauling

In the world of professional contracting, landscaping, and serious recreational hauling, downtime is the enemy of profit and progress. When a job demands a high-capacity, reliable transport solution, waiting weeks for a custom order isn’t an option. You need a workhorse that’s built to last, designed for efficiency, and available right now. This is where the Anvil 7×20 Double Axle Enclosed Cargo Trailer steps in—a robust, versatile, and immediately deployable asset for those who can’t afford to wait. It’s not just a piece of equipment; it’s the solution to your immediate hauling challenges, ready to be put to work the moment you need it.

enclosed trailer 7x20

The Urgency of “In Stock & Ready for Work”

The phrase “In Stock & Ready for Work” is more than a sales slogan; it’s a direct answer to a critical business need. For a contractor who just landed a major project, a landscaper expanding their fleet for the peak season, or a powersports enthusiast planning a last-minute trip, the ability to acquire a capable trailer immediately is a significant competitive advantage. It eliminates the lead times that plague custom orders, prevents costly project delays, and allows you to capitalize on opportunities as they arise. This immediate availability transforms the trailer from a future plan into a present-day productivity tool.

Introducing the Anvil 7×20 Double Axle Enclosed Cargo Trailer

The Anvil 7×20 Double Axle model is the epitome of readiness and capability. This specific configuration strikes an ideal balance between substantial interior volume and maneuverable towing. The 7-foot width provides ample space for wide equipment like zero-turn mowers or side-by-sides, while the 20-foot length offers generous room for tools, materials, and gear. Coupled with the stability and weight-bearing capacity of a double axle system, this enclosed cargo trailer is engineered to handle serious loads with confidence and is built to the high standards of durability for which Anvil is known.

Who Needs a 7×20 Double Axle Trailer Right Now?

The immediate demand for a trailer of this caliber spans multiple industries and hobbies. General contractors require it for securely transporting valuable tools and bulky materials like drywall and lumber to job sites. Landscaping crews depend on it to haul mowers, blowers, and trimmers, effectively creating a mobile workshop. Motorsport racers and recreational riders need a dependable way to transport ATVs, UTVs, and motorcycles. Even mobile businesses, from pop-up retailers to on-site service technicians, find the 7×20 platform to be the perfect foundation for their operations.

Why the 7×20 Double Axle Anvil Trailer is the Optimal Choice

Choosing the right trailer involves more than just finding one that’s available. It requires a combination of size, stability, and versatility that meets the demands of rigorous daily use. The Anvil 7×20 Double Axle model excels in these areas, establishing itself as the premier choice for professionals who demand performance and reliability.

Unmatched Capacity: Dimensions and Payload That Deliver

The core strength of the 7×20 Anvil trailer lies in its generous dimensions. With approximately 140 square feet of floor space and a substantial interior height, it can accommodate a vast range of cargo that smaller trailers simply cannot. This size is perfect for loading multiple pieces of large equipment, long lengths of building materials, or a full complement of tools and supplies for an extended project. The high payload capacity, supported by its robust frame and axle system, ensures you can haul heavy loads legally and safely, maximizing the efficiency of every trip.

Superior Stability and Handling with Double Axles

The inclusion of a double axle (or tandem axle) system is a critical feature for any serious hauling application. This design distributes the trailer’s weight over four wheels instead of two, dramatically improving stability on the highway, reducing sway in crosswinds, and providing a smoother ride. More importantly, it offers a crucial layer of safety; in the event of a tire blowout, the second tire on that side helps maintain control of the trailer, giving the driver time to pull over safely. This enhanced stability and redundancy are non-negotiable for anyone transporting heavy or valuable cargo.

Versatility Across Applications: More Than Just an Enclosed Cargo Trailer

While it excels as an enclosed cargo trailer for tools and equipment, the Anvil 7×20’s design lends itself to a multitude of applications. It can be transformed into a mobile workshop with the addition of shelving and workbenches, a secure storage unit on a long-term job site, or the base for a concession stand or mobile service business. This inherent adaptability ensures that your investment continues to provide value across different projects, seasons, and even business ventures, making it a truly multi-purpose asset.

Built Anvil Tough: Construction and Materials Designed for Durability

A trailer is only as good as its foundation. Anvil Cargo Trailers has built a reputation on using top-quality materials and superior construction methods. The 7×20 double axle model is a testament to this commitment, engineered from the ground up to withstand the rigors of daily work and challenging road conditions.

Robust Exterior: Protection from the Elements and the Road

The trailer’s exterior is its first line of defense. The Anvil 7×20 features a durable, weather-resistant exterior designed to protect your valuable cargo from rain, snow, and sun. A standard 24-inch Stoneguard on the front deflects rocks and road debris, preserving the trailer’s finish and preventing damage during transit. Furthermore, bright and efficient LED exterior lighting is standard, ensuring maximum visibility for safer towing, day or night. This combination of protective features safeguards both your investment and its contents.

Foundation and Frame: The Backbone of Your Trailer

The true strength of this trailer lies in its robust steel tube main frame and wall studs. Unlike weaker C-channel or Z-post frames, the fully-boxed tube construction provides exceptional rigidity and resistance to flexing and twisting under heavy loads. This strong skeleton is complemented by a heavy-duty 3/4″ plywood floor and premium 3/8″ plywood walls, creating a sturdy and reliable interior structure capable of handling demanding cargo and the installation of custom fixtures like E-tracks and shelving.

Thoughtful Design Elements: Semi-Screwed Exterior for a Clean Finish

Anvil utilizes a semi-screwed exterior, a construction method that balances strength with aesthetics. This technique involves using screws at the seams for maximum structural integrity while allowing the main panels to have a cleaner, smoother look. This reduces the number of potential failure points for water intrusion compared to a fully-screwed exterior and provides a more professional appearance, reflecting the quality of your business.

Effortless Access and Interior Functionality

A trailer’s utility is heavily defined by how easily you can load, access, and organize your cargo. The Anvil 7×20 is intelligently designed with features that streamline these processes, enhancing efficiency and security on every job.

Advanced Door Systems for Convenience and Security

Easy access starts with well-designed doors. The rear ramp door is equipped with a Spring Assist mechanism, which significantly reduces the effort required to lower and raise the ramp, making it a safe one-person operation. An integrated Extension Flap bridges the gap between the ramp and the ground, allowing for smooth loading of equipment with small wheels, like tool chests or dollies. For quick side access, the 32-inch RV-Style Side Door is a standout feature, complete with a secure Flush Lock and a hold-open mechanism to prevent it from swinging shut.

Optimized Interior for Your Gear

The spacious interior of the trailer is a blank canvas for your needs. The standard Interior Height of 6’3” allows most people to stand upright comfortably, making it easier to work inside and maneuver bulky items. The durable plywood walls provide a solid surface for mounting organizational systems, while the robust floor can handle the point loads of heavy machinery and pallet jacks. This functional space is designed to be as hard-working as the gear it protects.

Maintaining a Healthy Environment: Ventilation Options

Proper ventilation is crucial, especially when hauling equipment that may have fuel fumes or when working inside the trailer. Standard features often include sidewall vents or the option for a roof vent. These systems promote airflow, helping to dissipate fumes, reduce condensation, and regulate the interior temperature. This small but important feature contributes to a safer and more pleasant environment for you and your cargo.

Towing with Confidence: Performance, Safety, and Connectivity

The true test of a trailer is how it performs on the road. The Anvil 7×20 is engineered with a comprehensive system of running gear, safety features, and electrical connections to ensure a secure, stable, and compliant towing experience.

Dependable Axle System and Electric Brakes

The foundation of its road performance is the double axle system. This trailer features two 3500lb drop leaf spring axles, providing a gross vehicle weight rating (GVWR) that can handle substantial loads. Crucially, this AXLE configuration includes electric brakes on both axles. This feature provides significantly more stopping power than a tow vehicle’s brakes alone, which is essential for safely controlling a fully loaded trailer, especially during sudden stops or on steep downgrades.

High-Performance Tires and Wheels

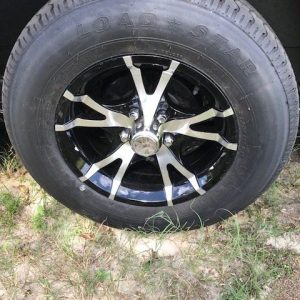

Connecting the trailer to the road are high-quality ST205 15-inch Radial Tires mounted on durable wheels. Radial Tires are superior to bias-ply alternatives, offering better heat dissipation for longer trips, a smoother ride for protecting sensitive cargo, and improved tread life. This choice of tire ensures greater reliability and reduces the likelihood of blowouts, providing peace of mind during long hauls.

Secure and Compliant Towing

A secure and reliable connection to your tow vehicle is paramount. The trailer comes standard with a 2-5/16″ coupler and a standard 7-way Round plug. This plug is the industry standard for trailers with electric brakes, providing a single, clean connection point for all necessary functions, including brake lights, turn signals, running lights, and the power for the electric brake system. This ensures your trailer is not only securely attached but also fully compliant with road safety regulations.

Tailoring Your 7×20 Anvil Trailer: Popular Options and Upgrades

While the standard in-stock Anvil 7×20 is exceptionally capable, a range of available options allows for further customization to meet highly specific needs. These upgrades can enhance functionality, convenience, and durability, turning a great trailer into the perfect tool for your trade.

Essential Electrical Packages for Enhanced Functionality

For those who need to work inside their trailer, an electrical package is a must-have upgrade. A typical package includes interior lights, wall receptacles, and an exterior power inlet with a breaker box. This allows you to power tools, charge batteries, and illuminate the workspace, effectively transforming your enclosed cargo trailer into a fully functional mobile workshop.

Specialized Packages for Specific Needs

Beyond general upgrades, Anvil offers specialized packages tailored to certain applications. For instance, a “landscaper package” might include reinforced ramps, specific tool racks, and heavy-duty D-rings. A “motorsports package” could add floor-mounted tie-downs, a finished interior, and a countertop cabinet for tools and spare parts. Exploring these options can provide a turnkey solution for your specific industry.

Practical Add-Ons for Improved Utility

A variety of smaller add-ons can make a significant difference in day-to-day use. Popular options include upgrading to aluminum wheels for improved appearance and corrosion resistance, adding stabilizer jacks for greater stability when unhitched, or installing E-track on the walls and floor for infinite cargo securing possibilities. These practical additions enhance the trailer’s utility and user experience.

Real-World Applications: Unleashing the Power of Your 7×20 Double Axle Trailer

The true value of the Anvil 7×20 is demonstrated in its real-world performance. Its combination of size, strength, and immediate availability makes it an indispensable tool for a wide array of professionals and enthusiasts.

For the Dedicated Contractor and Business Owner

For a general contractor or a skilled tradesperson, this trailer is a mobile command center. It securely stores thousands of dollars in tools, protects materials from theft and weather, and keeps everything organized and ready for deployment. The ability to haul everything needed for a job in a single trip saves time and fuel, directly boosting profitability. The professional appearance of a clean, well-maintained Anvil trailer also enhances a company’s image on the job site.

For the Adventurous Recreational User

Powersports enthusiasts will find the 7×20 to be the perfect toy hauler. It can easily accommodate two ATVs, a side-by-side, or multiple dirt bikes, with plenty of extra room for fuel cans, gear bags, and a cooler. The secure, enclosed space means you can leave your valuable machines locked safely inside overnight, providing peace of mind at the track or campground. The smooth towing provided by the double axle and Radial Tires makes long trips to your favorite riding spots more comfortable.

Emerging Opportunities: From Concession to Mobile Services

The entrepreneurial spirit is finding new uses for enclosed trailers. The 7×20 platform is an ideal starting point for a food concession trailer, a mobile pet grooming salon, a pop-up retail boutique, or an on-site IT repair service. Its ample space and sturdy construction can support the necessary equipment, and its mobility allows business owners to take their services directly to customers at fairs, markets, and community events.

7 x 20 enclosed cargo trailer

The “In Stock & Ready” Advantage: Why Wait?

In a competitive market, opportunity doesn’t wait. The Anvil 7×20 Double Axle Enclosed Cargo Trailer stands apart by offering an immediate, high-quality solution to your hauling needs. While others are waiting on custom orders, you can be on the road, getting the job done. The combination of its robust construction, versatile design, and critical safety features makes it a wise investment in your productivity and efficiency. With an attractive Price point and potential Sale opportunities, the value proposition is clear. Don’t let a lack of equipment hold you back. Your next workmate is built, in stock, and ready to help you succeed today.
