7x14 Double Axle with Blackout Package

Q: Is there Financing available?

Click the link below for Financing Options: https://makemytrailer.com/enclosed-trailer-financing-services/

Q: Is there Delivery available?

Click the link below for Delivery Options: https://makemytrailer.com/delivery/

Everything you need to know about the

7×14 Double Axle with Blackout Package

7x14 Double Axle with Blackout Package

1. Technical Features Table

→ → →

Standard Features	PROCRAFT
PRICE	$5,027.00
EXTERIOR METAL	.030 Aluminum Metal Semi-Screwed Exterior
AXLES	3500# Drop Leaf Spring Axles
V-NOSE	V Nose (Standard)
ELECTRIC BRAKES	Axles w/ Electric Brakes
DOME LIGHT	❌
WALLS/CEILING TUBING	2x2 Tube CXM's
FLOOR TUBING	14': 4" Steel Tube M.F.
FLOOR CROSS-MEMBERS	Floor Members 16" O.C.
ROOF CROSS-MEMBERS	Roof Members 24" O.C.
WALL CROSS-MEMBERS	Wall Members 16" O.C.
LIGHTS	(1) 3' Strip Light // Strip Taillights - Reverse // Loading Light Above Rear
INTERIOR HEGHT	75" (6'3") Interior height
REAR DOOR	Ramp Door w/ Flap & Aluminum Handle
PLUG / COUPLER (BALL)	7 Way Bargman Plug 2 5/16" Coupler
FENDERS	ATP Fenders
SIDE DOOR	36" Side Door w/ Flush Lock & Barlock

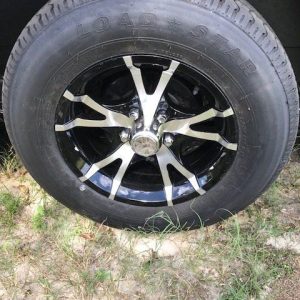

TIRES	ST205 15" Radial Tires
RIMS/WHEELS	Silver Rim
ROOF MATERIAL	Galvalume Roof
STONEGUARD	V-Nose w/24" Stoneguard
TONGUE JACK	5000 lb A-Frame Jack w/ Sand Foot
HUBS	E-Z Lube Hubs
THERMA-PLY	❌
WALL MATERIAL	3/8" Plywood Walls
FLOOR MATERIAL	3/4" Plywood Floor
SIDEWALL VENTS	Plastic Side Wall Vents
EMPTY WEIGHT	2120 lbs
LOAD CAPACITY	4880 lbs
GVWR	7000 lbs
TONGUE WEIGHT	318 lbs

2. Technical FAQ

What’s the EXTERNAL trailer length, width and height on the 7x14?

Overall Length: 17'6" / 210 in (Breakdown: 14' on the Box + 3'6" on the Tongue) 20" on the Vnose
Overall Width: 8’6" / 102 in (Breakdown: 7' on the Box + 9" on each Fender)
Overall Height ( Diamond ): 8'4" / 100 in (Breakdown: 7' on the Box + 16" from the ground to the box)
Overall Height (Anvil): 7'7" / 91 in (Breakdown: 6'3" on the Box + 16" from the ground to the box)

What’s the INTERNAL trailer length, width and height on the 7x14?

Overall Length: 13'9" Box (Breakdown: Subtract 3" which counts for rear door & framing) plus 20" on the Vnose
Overall Width: 6'8" (Breakdown: Subtract 4" (2" on each side) which counts for plywood & framing)
Overall Height ( Diamond ): 7'
Overall Height (Anvil): 6'3"

What are the Rear Door Entry Measurements on the 7x14?

Width: 74" (Breakdown: Subtract 10" (5 on each side) which counts for plywood & framing)
Height ( Diamond ): 78" (Breakdown: Subtract 6" which counts for plywood & framing)
Height (Anvil): 69" (Breakdown: Subtract 6" which counts for plywood & framing)

What electric hookup do I need for my trailer lights?

7-way Round plug

What is the bolt pattern for the wheels?

5×4.5 (5 Lug)

What is your tire ply rating?

6 Ply

What is semi screw less?

Screws are 4' apart instead of being every 2'

What paint do you typically use for underneath the plywood?

It's an asphalt undercoating paint

Do you need HELP selecting your Custom Options?

We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:

Click Here for More Information.

Here are examples of some of the most popular Custom Options:

– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

3. Sample Photos

4. Sample Video

5. Sample Colors (click to enlarge)

White	Electric Blue	Red
Black	Pewter	Orange
Silver Frost	Electric Green	Matte Black
Indigo Blue	Emerald Green	Yellow
Charcoal Grey	Brandywine	Arizona Beige
Dove Grey	Sahara Desert

6. Purchase FAQ

Is there Financing available?

Click the link below for Financing Options:

https://makemytrailer.com/enclosed-trailer-financing-services/

Is there Delivery available?

Click the link below for Delivery Options:

https://makemytrailer.com/delivery/

What Paperwork comes with my Trailer?

30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer

Are your prices Factory Direct?

Yes they are and also the reason why your trailer pick up is directly at the Factory

Do we Charge Taxes?

We do not charge any taxes, that's something that you pay when you register the trailer

When can I get my VIN number?

Yes, as soon as your trailer is ready we can provide your with your VIN number.

How can I pay my Deposit?

1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier's Check
3) Wire Transfer

What happens after the Deposit is paid?

Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer

How long does our production team takes to the build your trailer?

It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.

Note: We do make exceptions so make sure to ask our sales team

Do I get any updates on my order?

We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements

7. Need a Quote?
