Make My Trailer

Everything you need to know about the

5x10 Enclosed Trailer in Georgia

1. Technical Features Table

→ → →

Standard FeaturesRolling Vault (Economy)
PRICE$3,031.00
EXTERIOR METAL.024 Exterior Metal - Screwed metal exterior
AXLES2990 lb leaf spring axle
V-NOSE V-Nose with vertical ATP trim
WALLS/CEILING TUBING 1x1" steel tube in walls and ceiling
FLOOR TUBING "2x3"" steel tube main rails"
FLOOR CROSS-MEMBERS 24" OC Floor Members
ROOF CROSS-MEMBERS24" OC Roof Members
WALL CROSS-MEMBERS16" OC Wall Members
LIGHTSLED Strip tail lights
INTERIOR HEGHT60" (5') Interior height
REAR DOOR Single Rear Door
PLUG / COUPLER (BALL)4-way flat plug / 2" coupler
FENDERSAluminum fenders w/lights

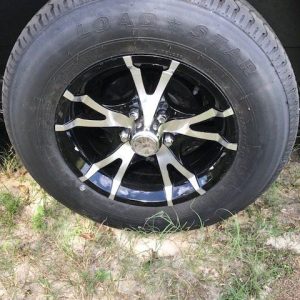

TIRESST205 15" RADIAL tires
RIMS/WHEELSSilver Mod Wheels
ROOF MATERIAL Galvalume roof
STONEGUARD12" Stoneguard on front
TONGUE JACK2000 lb tongue jack
HUBS EZ Lube Hubs
WALL MATERIAL3/8" plywood sidewalls
FLOOR MATERIAL3/4" plywood floor/painted underneath
EMPTY WEIGHT1160 lbs
LOAD CAPACITY1830 lbs
GVWR2990 lbs
TONGUE WEIGHT147 lbs

2. Technical FAQ

What’s the EXTERNAL trailer length, width and height on the 5x10?

Overall Length: 13’6″ / 162 in (Breakdown: 10′ on the Box + 3’6″ on the Tongue) 18″ on the Vnose
Overall Width: 6’6″ / 78 in (Breakdown: 5′ on the Box + 9″ on each Fender)
Overall Height: 6’4″ / 76 in (Breakdown: 5′ on the Box + 16″ from the ground to the box)

What’s the INTERNAL trailer length, width and height on the 5x10?

Overall Length: 9’9″ Box (Breakdown: Subtract 3″ which counts for rear door & framing) plus 18″ on the Vnose
Overall Width: 4’8″ (Breakdown: Subtract 4″ (2″ on each side) which counts for plywood & framing)
Overall Height: 5′

What are the Rear Door Entry Measurements on the 5x10?

Width: 50″ (Breakdown: Subtract 10″ (5 on each side) which counts for plywood & framing)
Height: 54″ (Breakdown: Subtract 6″ which counts for plywood & framing)

Does the 5x10 trailer come with electric brakes?

No it doesn’t but they’re available as a custom option.

Side Note: If the combined weight of the trailer and its load approaches or exceeds 3,000 pounds, many jurisdictions require brakes on the trailer. However, a 4×6 enclosed trailer, given its size, is unlikely to reach this weight limit when fully loaded, as they typically have a lower payload capacity.

Safety Considerations

Driving Conditions: If you plan to tow your trailer in hilly or mountainous areas, or if you’ll be driving in a lot of stop-and-go traffic, having electric brakes can significantly improve safety by reducing stopping distances and improving vehicle control.

Emergency Handling: Electric brakes can offer better control in emergency braking situations, reducing the risk of accidents.

Wear on Vehicle Brakes: Using a trailer with its own braking system can reduce wear and tear on your vehicle’s brakes, especially important for frequent towing or heavy loads.

What electric hookup do I need for my trailer lights?

4-way flat plug

What is the bolt pattern for the wheels?

5×4.5 (5 Lug)

What is your tire ply rating?

6 Ply

What is semi screw less?

Screws are 4′ apart instead of being every 2′

What paint do you typically use for underneath the plywood?

It’s an asphalt undercoating paint

Do you need HELP selecting your Custom Options?

We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:

Click Here for More Information.

Here are examples of some of the most popular Custom Options:

– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

3. Sample Photos

4. Sample Video

5. Sample Colors (Click to enlarge)

6. Purchase FAQ

Is there Financing available?

Click the link below for Financing Options:
https://makemytrailer.com/enclosed-trailer-financing-services/

Is there Delivery available?

Click the link below for Delivery Options:
https://makemytrailer.com/delivery/

What Paperwork comes with my Trailer?

30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer

Are your prices Factory Direct?

Yes they are and also the reason why your trailer pick up is directly at the Factory.

Do we Charge Taxes?

We do not charge any taxes, that’s something that you pay when you register the trailer

When can I get my VIN number?

Yes, as soon as your trailer is ready we can provide your with your VIN number.

How can I pay my Deposit?

1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier’s Check
3) Wire Transfer

What happens after the Deposit is paid?

Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer

How long does our production team takes to the build your trailer?

It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.

Note: We do make exceptions so make sure to ask our sales team

Do I get any updates on my order?

We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements

Buy Now

By clicking Buy Now, you will be redirected to our secure checkout page. A deposit is required to reserve this trailer, and the remaining balance must be paid at pickup or delivery. Final price may vary depending on manufacturer and options. Please contact us to confirm details before completing your order.

7. Need a Quote?

Have you recently invested in an enclosed cargo trailer, or are you looking to maximize the lifespan and efficiency of your current one? Our comprehensive PDF guide is your ultimate companion to mastering the art of trailer maintenance!

Safeguard Your Investment:

10 Smart Ways to Prevent Trailer Theft!

Useful Article About:

Discover Affordable 5x10 Enclosed Trailer in Georgia: Get Details on Features, Pricing, and Local Availability!

For small business owners, contractors, and avid hobbyists across Georgia, finding a reliable and cost-effective way to transport equipment, tools, and goods is paramount. The 5×10 enclosed trailer has emerged as a perfectly sized solution, offering a blend of security, mobility, and value. These versatile workhorses protect your assets from unpredictable Southern weather and potential theft, making them a smart investment. The overall Cargo Trailer Market is estimated to be valued at approximately USD 8.5 Billion in 2024, reflecting the growing demand for dependable hauling solutions. This guide is designed to navigate the Georgia market, helping you find the ideal trailer for your needs.

Introduction: Your Go-To Guide for Affordable 5×10 Enclosed Trailers in Georgia

Welcome to your definitive resource for understanding the 5×10 enclosed cargo trailer landscape in the Peach State. Whether you’re hauling landscaping equipment in Savannah, construction tools in Atlanta, or motorcycle gear for a trip to the Blue Ridge Mountains, this guide will provide the critical information you need to make an informed purchase. We’ll break down the features that matter, the pricing you can expect, and where to find these trailers locally.

What This Guide Will Cover: Features, Pricing, and Local Availability

This article will delve into the specifics of what makes a 5×10 trailer a superior choice. We will explore the robust construction and key components that define a quality build, discuss typical pricing structures and available financing options, and point you toward reputable dealers and manufacturers right here in Georgia. Our goal is to equip you with the knowledge to select a trailer that delivers exceptional value and long-term performance.

5 x 10 enclosed trailer

Why a 5×10 Enclosed Trailer is a Smart Move for Georgia Residents

In a state where small businesses comprise 99.7% of all businesses, having the right equipment can make all the difference. A 5×10 enclosed trailer hits the sweet spot between capacity and convenience. It’s large enough to handle significant loads for landscaping, contracting, or mobile service businesses, yet compact enough to be towed by most trucks and larger SUVs and maneuvered easily in tight urban or residential spaces.

Ideal Use Cases for a 5×10 Enclosed Cargo Trailer in Georgia

The versatility of these trailers is their greatest strength. Landscapers can securely store mowers and tools, while construction crews have a mobile workshop for their gear. For personal use, they are perfect for moving, hauling ATVs or motorcycles, or even as a mobile storage unit. Many Georgia residents use them as a dedicated Motorcycle Trailer for weekend getaways, ensuring their prized bike stays clean and secure.

What This Guide Covers: Features, Pricing, and Where to Find Them Locally

We will meticulously examine the components that contribute to a trailer’s durability, such as its frame, axle, and exterior materials. You’ll gain a clear understanding of what a fair price looks like and learn about accessible financing options. Finally, we’ll highlight key areas in Georgia where you can find reputable dealers, including brands like Diamond Cargo, ensuring you can see and feel the quality before you buy.

Advantages of Enclosed Trailers for Security and Weather Protection

Unlike an open Utility Trailer, an enclosed cargo trailer offers unparalleled protection. The lockable doors provide a powerful deterrent against theft, giving you peace of mind when leaving valuable equipment on a job site overnight. Furthermore, the solid walls and roof shield your cargo from Georgia’s intense summer sun, sudden downpours, and high humidity, preventing rust, water damage, and fading.

Unlock the Versatility of a 5×10 Enclosed Trailer

The true value of a 5×10 trailer lies in its adaptability. It is not just a box on wheels but a secure, mobile extension of your business or hobby. Its design is a thoughtful combination of strength, functionality, and protection, making it suitable for an incredibly wide range of applications across Georgia.

Robust Construction: The Foundation of Durability

A trailer’s lifespan is determined by its foundation. High-quality models are built on a sturdy frame, often using a steel tube design for the main rails and cross members. This provides superior rigidity and strength compared to weaker C-channel or angle iron frames, ensuring the trailer can handle heavy loads and rough roads without compromising its structural integrity.

Great Ways to Use a 5×10 Enclosed Cargo Trailer in Georgia

From a mobile detailing business in Macon to a catering service in Augusta, the applications are endless. Electricians and plumbers use them to organize tools and parts, while bands can transport their sound equipment securely to gigs. They are also ideal for antique dealers protecting delicate inventory or for families moving a college student into their dorm.

Exterior Design and Weather Resistance

Modern enclosed trailers are designed for durability and efficiency. Many feature a V-Nose with vertical ATP trim, which not only improves aerodynamics for better fuel economy but also adds an extra layer of protection against road debris. The exterior aluminum skin, coupled with a seamless Galvalume roof, creates a formidable barrier against moisture intrusion, a critical feature in Georgia’s humid climate.

Comparing a 5×10 Enclosed Trailer to Utility and Open Cargo Trailers

While open cargo trailers are useful for hauling bulky, weather-resistant items like lumber or mulch, they leave your cargo exposed. An enclosed trailer offers a secure, weatherproof environment. This distinction is vital for anyone transporting tools, electronics, finished goods, or anything susceptible to damage from the elements or theft, providing a much higher level of utility.

Interior Finishes and Functionality

The interior of a quality 5×10 trailer is designed for toughness. A 3/4″ plywood floor offers a strong and durable surface capable of withstanding heavy foot traffic and equipment. The walls, typically lined with 3/8″ plywood sidewalls, provide a sturdy surface for mounting shelves, racks, or tie-down points, allowing for complete customization of the interior space.

Why Enclosed Trailers are Your Best Bet for Security and Weather Protection

The simple act of closing and locking a trailer door provides a level of security that open trailers cannot match. For the 1.7 million Georgians employed by small businesses, according to data from Boost Suite, protecting business assets is non-negotiable. Enclosed trailers serve as a mobile vault, safeguarding thousands of dollars in equipment from both opportunistic thieves and damaging weather events.

Driver Convenience

A 5×10 trailer is designed for user-friendly operation. Its single-axle configuration makes it lightweight and easy to maneuver in reverse. A standard Tongue Jack allows one person to easily hitch and unhitch the trailer. Features like a side door provide quick access to items stored in the front without having to lower the main rear ramp.

Key Features of a Top-Notch 5×10 Enclosed Trailer

When shopping for a trailer, knowing what to look for under the surface is crucial. The best models are defined by the quality of their components, from the frame to the tires. Understanding these features ensures you invest in a trailer that is built for the long haul.

Beyond the Sticker Price: Understanding True Value

True value is found in longevity and reliability, not just the initial cost. A slightly more expensive trailer built with a steel tube in walls and ceiling, Radial Tires, and a superior axle will cost you less in repairs and downtime over its lifespan. The growing popularity of enclosed trailers, with the segment anticipated to expand at a CAGR of 3.9%, shows that consumers are increasingly recognizing this long-term value.

Solid Construction: Built to Last

Look for trailers with a main frame constructed from 2″x3″ or larger steel tubing. The floor members and wall studs should also be made of steel, providing a rigid skeleton. This robust construction prevents the trailer from flexing under load, which can lead to cracked welds and premature failure over time.

The “Factory Direct” Advantage: Potential Savings for Georgia Buyers

Georgia is home to several trailer manufacturers, which means buyers can often purchase directly from the factory or a high-volume distributor. This can translate into significant savings by cutting out the middleman. It also provides a direct line for warranty claims and access to a wider array of customization options.

Axle, Tires, and Suspension: Smooth and Safe Towing

A 5×10 trailer should be equipped with a 3500lb Leaf Spring Axle, providing a durable and reliable suspension system that absorbs road shock. Paired with EZ Lube Hubs, routine maintenance becomes a simple task. High-quality Radial Tires mounted on Silver Mod Wheels offer better tread life, heat dissipation, and a smoother ride compared to cheaper bias-ply tires.

Customization Options for Your Specific Georgia Needs

One of the greatest benefits of buying a new trailer is the ability to create a custom trailer tailored to your exact requirements. From simple cosmetic choices to complex interior build-outs, customization transforms a standard trailer into a specialized tool for your trade or hobby.

Exterior Design and Weather Resistance

Beyond the standard V-nose and Galvalume roof, you can often choose from a wide palette of colors to match your company branding or vehicle. Upgraded trim packages, featuring more ATP Trim (Aluminum Tread Plate), can add both style and rugged protection to high-wear areas like corners and fenders.

Popular Customizations for Various Uses

For a Motorcycle Trailer, this might mean adding floor-mounted D-rings and a wheel chock. Contractors may opt for ladder racks on the roof and built-in shelving inside. Those using it for concessions might need windows, electrical wiring, and reinforced flooring. While too small for most vehicles, a 5×10 can be customized to function as a hauler for smaller equipment, bridging the gap between a utility trailer and larger car haulers.

Easy Access and Loading

How you get your cargo in and out of the trailer is a critical consideration. The right combination of doors and ramps can dramatically improve your daily efficiency and safety.

Navigating Georgia’s Trailer Market: Dealers and Distributors

Georgia has a robust market for cargo trailers, with major manufacturing hubs and dealerships located throughout the state, particularly in southern regions. When visiting a dealer, ask about their current inventory, brands they carry, and typical lead times for custom orders.

Interior Options and Functionality

The interior of your trailer is a blank canvas. Beyond the standard plywood walls and floor, you can add features like E-track systems for versatile tie-down points, non-slip floor coverings, or interior lighting. These functional upgrades make the space more efficient and safer to work in.

What to Ask Local Dealers About Inventory and Lead Times

Before visiting, call ahead to inquire about their stock of 5×10 models. Ask about the standard features included in their base price and get a clear timeline for any customizations. Understanding lead times is crucial if you need the trailer for a specific project or date.

Lighting and Safety Features

Proper lighting is essential for safety and legal compliance. Modern trailers have moved away from incandescent bulbs in favor of brighter, more durable, and energy-efficient LED lighting.

Standard safety features include DOT-approved LED Strip tail lights and Aluminum fenders w/lights for side visibility. The Rear Ramp Door often comes with a Spring Assist mechanism, making it lighter and safer to lift and lower, preventing strain and injury. A secure bar lock on the Side Door and ramp ensures your contents are protected when you’re away.

5 10 enclosed trailer

Conclusion

Investing in an affordable 5×10 enclosed trailer is a strategic decision for countless Georgians. This versatile tool offers an unmatched combination of security, weather protection, and hauling capacity in a manageable size. By prioritizing key features like a robust steel tube frame, a reliable Leaf Spring Axle with Radial Tires, and weather-resistant elements like a Galvalume roof, you ensure your trailer will be a durable asset for years to come. With a strong manufacturing presence in the state, evidenced by the industry’s 5.9% average annual growth from 2020 to 2025, Georgia buyers are in an excellent position to find high-quality, factory-direct options.

As you begin your search, use this guide to ask informed questions. Inquire about financing options, explore customization possibilities to create the perfect custom trailer for your needs, and inspect the build quality firsthand at a local dealership. Your ideal 5×10 enclosed trailer is waiting to help you protect your gear, grow your business, and pursue your passions across the great state of Georgia.
