Everything you need to know about the 5x6 Single
plus our helpful maintenance guide
Table of Content - 5x6 Single Axle
1. Technical Features
→ → →
| Standard Features | South Georgia Cargo |
| PRICE | $2,900.00 |
| EXTERIOR METAL | White metal exterior (.080) / Screwed metal exterior |
| AXLES | 3500lb leaf spring axle |
| V-NOSE | V-Nose with vertical ATP trim |
| FRONT DESIGN | Aerodynamic styling |
| WALLS/CEILING TUBING | 1x1" steel tube in walls and ceiling |
| FLOOR TUBING | 2x3" steel tube main rails |
| FLOOR CROSS-MEMBERS | 24" OC Floor Members |
| ROOF CROSS-MEMBERS | 24" OC Roof Members |
| WALL CROSS-MEMBERS | 16" OC Wall Members |
| TAIL LIGHTS | LED Strip tail lights |
| INTERIOR HEGHT | 60" (5') Interior height |
| REAR DOOR | Single Rear Door |
| PLUG / COUPLER (BALL) | 4-way flat plug/ 2" coupler |
| FENDERS | Aluminum fenders w/lights |
| TIRES | ST205 15" RADIAL tires |
| RIMS/WHEELS | Silver Mod Wheels |
| ROOF MATERIAL | Galvalume roof |
| STONEGUARD | 12" Stoneguard on front |
| TONGUE JACK | 2000 lb tongue jack |
| HUBS | EZ Lube Hubs |
| WALL MATERIAL | 3/8" plywood sidewalls |
| FLOOR MATERIAL | 3/4" plywood floor/painted underneath |
| EMPTY WEIGHT | 900 lbs |
| LOAD CAPACITY | 2600 lb |
| GVWR | 3500 lbs |
| TONGUE WEIGHT | 105 lbs |
2. Technical FAQ
Overall Length: 9’6″ / 114 in (Breakdown: 6′ on the Box + 3’6″ on the Tongue) 18″ on the Vnose
Overall Width: 6’6″ / 78 in (Breakdown: 5′ on the Box + 9″ on each Fender)
Overall Height: 6’4″ / 76 in (Breakdown: 5′ on the Box + 16″ from the ground to the box)
Overall Length: 5’9″ Box (Breakdown: Subtract 3″ wich counts for rear door & framing) plus 18″ on the Vnose
Overall Width: 4’8″ (Breakdown: Subtract 4″ (2″ on each side) which counts for plywood & framing)
Overall Height: 5′
Width: 50″ (Breakdown: Subtract 10″ (5 on each side) which counts for plywood & framing)
Height: 54″ (Breakdown: Subtract 6″ which counts for plywood & framing)
No it doesn’t but they’re available as a custom option.
Side Note: If the combined weight of the trailer and its load approaches or exceeds 3,000 pounds, many jurisdictions require brakes on the trailer. However, a 4×6 enclosed trailer, given its size, is unlikely to reach this weight limit when fully loaded, as they typically have a lower payload capacity.
Safety Considerations
Driving Conditions: If you plan to tow your trailer in hilly or mountainous areas, or if you’ll be driving in a lot of stop-and-go traffic, having electric brakes can significantly improve safety by reducing stopping distances and improving vehicle control.
Emergency Handling: Electric brakes can offer better control in emergency braking situations, reducing the risk of accidents.
Wear on Vehicle Brakes: Using a trailer with its own braking system can reduce wear and tear on your vehicle’s brakes, especially important for frequent towing or heavy loads.
4-way flat plug
5×4.5 (5 Lug)
6 Ply
Screws are 4′ apart instead of being every 2′
It’s an asphalt undercoating paint
We developed a section exclusively for Custom Options where we show sample photos and explain most popular options:
Click Here for More Information.
Here are examples of some of the most popular Custom Options:
– Blackout Package
– Electrical Package
– Insulation Package
– Rubber Flooring
– Etracks
– D-rings
– Windows
– Extended Tongue
– Extra Height
– Ladder Racks
– Finished Interior (Metal/Vinyl)
– Air Conditioner
– Lighting Options
– Axle Upgrades
– Concession Window
– Special Door Options
– Cabinets
– Barn Doors

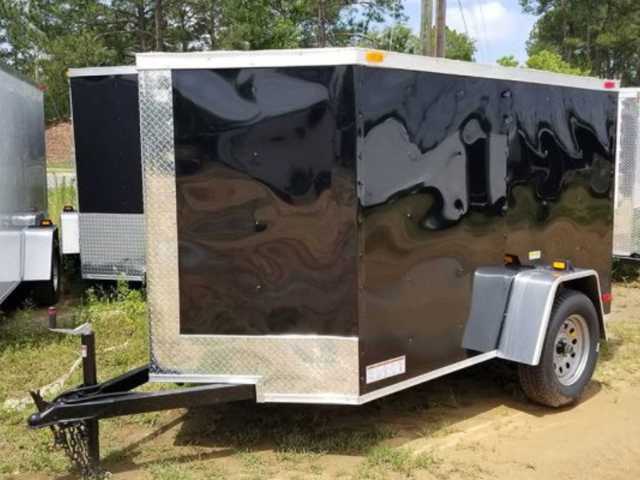

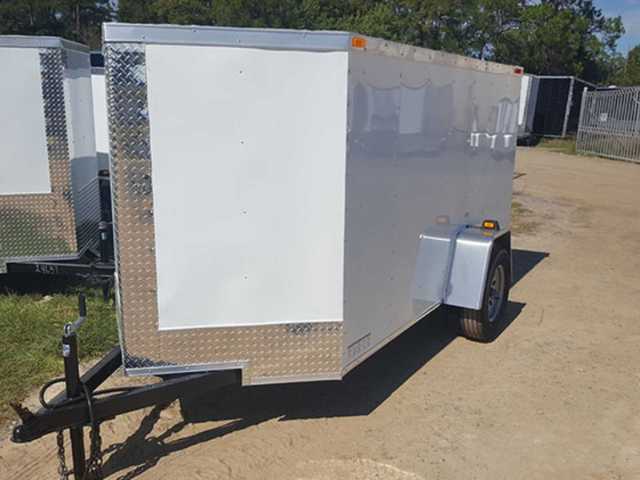

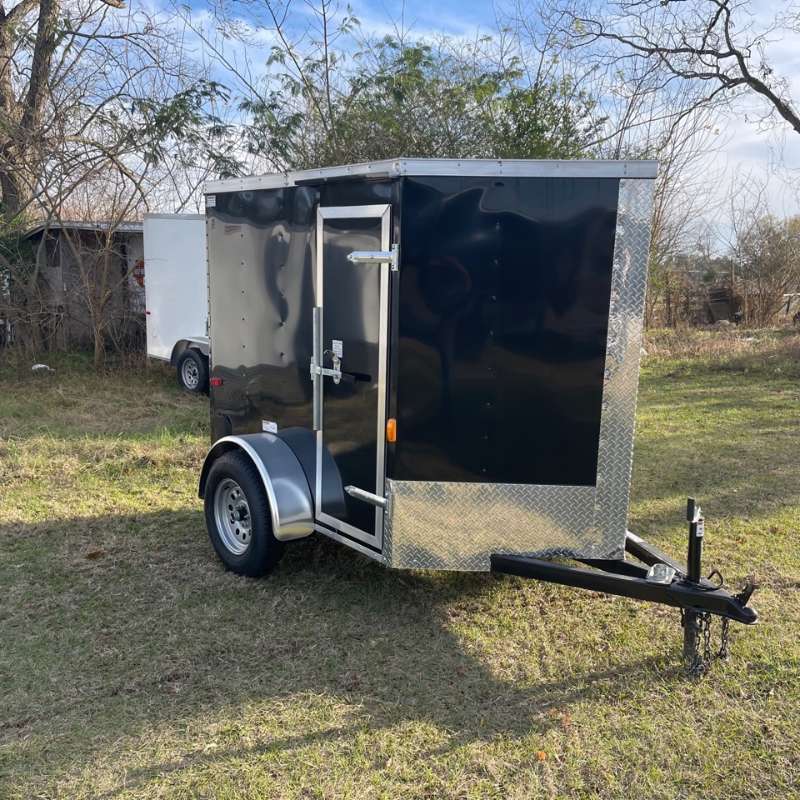

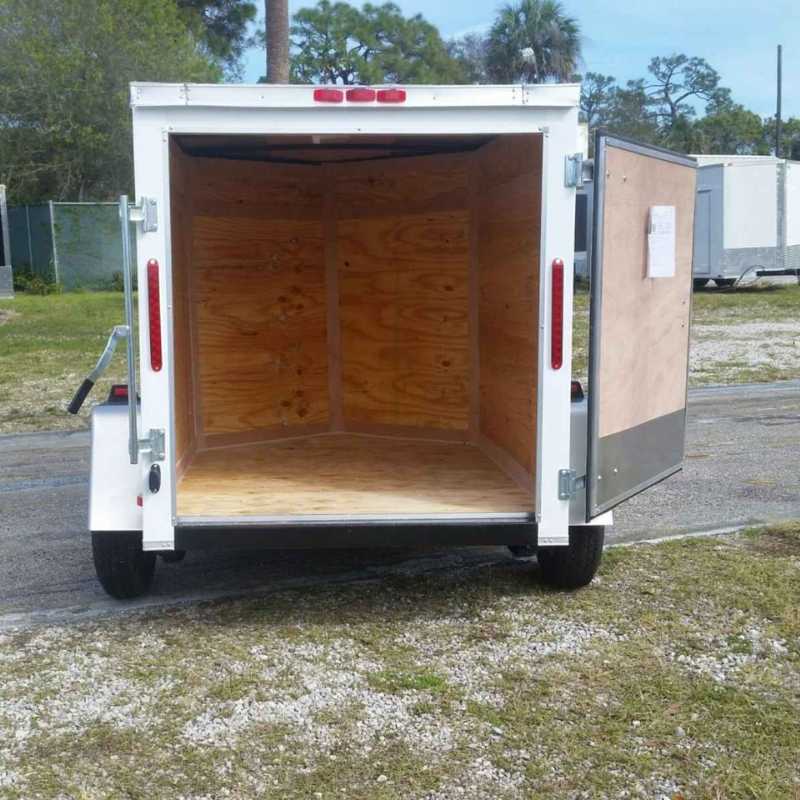

3. Sample Photos
4. Sample Video
5. Sample Colors (Click to enlarge)
6. Purchase FAQ
Click the link below for Financing Options:
https://makemytrailer.com/enclosed-trailer-financing-services/
Click the link below for Delivery Options:
https://makemytrailer.com/delivery/
30 Day Temporary Tag, Certificate of Origin and obviously your Title so you can register your brand new trailer
Yes they are and also the reason why your trailer pick up is directly at the Factory.
We do not charge any taxes, that’s something that you pay when you register the trailer
Yes, as soon as your trailer is ready we can provide your with your VIN number.
1) Credit or Debit Card (over the phone or invoice sent to your email)
2) Mail a Cashier’s Check
3) Wire Transfer
Once your deposit is confirmed we’ll send you an email just make everything official and after 24 hours (timeframe we provide in case of any changes) we will send your order to our production team so they can start working on your future top notch trailer
It depends on 2 factors: The season and your Order so make sure to ask our awesome sales team for a more accurate completion timeframe but on average you might be looking between 2 to 4 weeks on standard order and about 3 to 5 weeks for orders with custom options.
Note: We do make exceptions so make sure to ask our sales team
We don’t usually provide any updates during the building process but we can definitely ask our production team how things are going but as soon as your trailer is ready, we will send you the completion email along with the instructions so you can start your pick up arrangements
7. Create a Quote
8. Still Got a Question?
We try to cover all the basic questions so our customers can make an informed and smart purchase, but if we missed any information that prevents you from moving forward please feel free to email, chat or call us, our awesome and knowledgeable sales team will be happy to help.
Have you recently invested in an enclosed cargo trailer, or are you looking to maximize the lifespan and efficiency of your current one? Our comprehensive PDF guide is your ultimate companion to mastering the art of trailer maintenance!
- Step-by-step instructions on pre-use checks to ensure safety and readiness for the road.
- Expert advice on periodic maintenance routines to keep your trailer in peak condition.
- DIY tips for interior and exterior care, from flooring maintenance to rust prevention.
- Winterizing strategies that protect your investment through the coldest months.
- Essential insights into tire care, brake maintenance, and the importance of proper ventilation.
- Bonus content: Safety equipment checklist, emergency preparedness, and much more!
Safeguard Your Investment:
10 Smart Ways to Prevent Trailer Theft!
Affordable 5x6 Enclosed Trailers - Browse Our Selection
Dive into the world of enclosed trailers, our reliable partners in transport, offering top-notch security and convenience. In today’s fast-paced environment where adaptability is a must, our 5×6 enclosed trailers stand ready to tackle any transportation task, whether for personal projects or professional endeavors. With their rising popularity among those seeking effective trailer solutions, understanding these compact yet versatile units is crucial.
The 5×6 size is celebrated for providing just the right mix of space and easy handling, making them a hit with both beginners and experienced trailer users. You’ll find them in various setups, featuring options like single or tandem axles and different door styles, each crafted to meet specific needs. This variety ensures a perfect trailer fit for any transport requirement.
In this guide, we explore the extensive options that 5×6 enclosed trailers offer, weighing the benefits of new versus used units and examining the smartest buying strategies. Whether you’re planning to purchase outright or explore financing avenues, looking into top models like the Pro Series and Interstate LoadRunner will give you a full picture of what’s available. Join us as we journey through the realm of compact enclosed trailers, ensuring you have the insights needed to make well-informed decisions tailored to your needs.
Understanding 5x6 Enclosed Trailers
5×6 enclosed trailers are a popular choice for individuals and businesses seeking a compact yet versatile option for transporting goods and equipment. Known for their durability and practicality, these trailers typically feature aerodynamic styling that enhances fuel efficiency and ease of towing. Equipped with advanced LED lighting systems, they ensure visibility and safety during night time use. The construction involves all-tube design, aluminum fenders, and a main frame made from robust 3-inch steel tubes, ensuring the structure’s strength and longevity. These trailers generally have an interior height of 60 inches, which, along with double rear doors and a standard 2-inch coupler, offers convenience and accessibility. The 3/4 STABLEDECK flooring provides a sturdy base, ideal for carrying various loads reliably. Furthermore, many models come with a five-year frame warranty, underscoring the manufacturer’s confidence in the trailer’s long-term structural integrity.
Definition and Dimensions
The 5×6 enclosed trailer is defined by its compact size and efficient design, making it ideal for a variety of hauling needs. The trailer typically boasts an overall external length of 96 inches. This includes a 60-inch box and a 36-inch tongue. Internally, the box measures around 59 inches in length, supplemented by an 18-inch V-nose, providing extra space within the compact framework. The overall external width of these trailers is 66 inches, which breaks down to a 5-foot box width enhanced by 9-inch fenders on either side. Inside, the usable width is 48 inches after considering the thickness of plywood and framing, which subtracts a total of 4 inches. The rear door entry is designed for functionality, with dimensions of 50 inches in width and 54 inches in height, ensuring easy access while safeguarding cargo during transit.
Common Uses and Applications
5×6 enclosed trailers serve a myriad of purposes, thanks to their versatility and protection features. These trailers are commonly used for safely transporting goods, equipment, and materials, shielding them from adverse weather conditions and ensuring they remain intact during transit. They also offer secure additional storage solutions, perfect for those needing extra space for storing valuable items.
Furthermore, these trailers are ideal for recreational activities. Whether hauling bikes, camping gear, or other recreational equipment, they provide the necessary space and protection needed for adventurous outings. For moving large pieces of furniture, 5×6 trailers ensure that items are safely and securely transported, minimizing the risk of damage during the move. Additionally, the flexibility of enclosed trailers allows for creative uses, such as converting them into mobile businesses. This enables entrepreneurs to take their services to various locations and events, meeting customers wherever they may be. Overall, 5×6 enclosed trailers offer a reliable and customizable solution for a wide range of hauling and storage needs.
Types of Enclosed Trailers
Enclosed trailers offer a versatile solution for various transportation and storage needs, available in a plethora of models, sizes, and configurations. They are designed to protect your cargo from the elements while ensuring safe and secure transportation. From the compact 5×6 single axle trailers suitable for personal use to more advanced and extensive trailers designed for commercial applications, the industry provides options to fit a wide range of hauling capacities. Their adaptability makes them ideal for transporting goods, moving large pieces of furniture, or serving as mobile business operations. Furthermore, enclosed trailers can be customized to meet specific requirements, whether it involves choosing between a steel frame or including plywood wall liners. Each feature is geared toward maximizing utility and efficiency, making them a trusted choice for both personal and professional use.
Single Axle vs. Tandem Axle
The decision between a single axle and a tandem axle enclosed trailer often hinges on your specific needs in terms of load capacity and maneuverability. Single axle trailers are typically lighter and easier to handle, which is advantageous for those who prioritize ease of towing and less complicated maintenance. They are an excellent choice for lighter loads and shorter distances. On the other hand, tandem axle trailers offer superior stability and are better equipped to handle more substantial loads. Thanks to their weight distribution capabilities, these trailers provide a smoother ride, making them suitable for longer trips and more demanding applications. Consideration of these factors is crucial when selecting the right trailer to ensure it meets your hauling and towing requirements.
Door Configurations: Barn, Rear, and Ramp Doors
Selecting the appropriate door configuration for your enclosed trailer significantly impacts its functionality and ease of use. Options like barn doors and rear ramp doors cater to different loading and unloading preferences. Barn doors offer robust security and are ideal for situations where a ramp isn’t feasible, while a rear ramp door provides a seamless loading experience and is especially beneficial for wheeled cargo. The available extra-large 32 x 70 RV-style side door enhances accessibility, making loading and unloading more efficient. Aluminum door holders ensure doors stay open securely, facilitating ease of use. By evaluating your specific cargo-handling needs, you can choose a door configuration that best serves your operational requirements, optimizing the trailer for various applications.
Benefits of 5×6 Trailers
When it comes to selecting a trailer for your cargo needs, the 5×6 enclosed trailer stands out due to its practical size and robust construction. These trailers are equipped with ST205 15″ radial tires, which enhance durability and performance, making them a reliable choice for transporting cargo. The aerodynamic styling further increases fuel efficiency and eases towing, ensuring that your trailer’s performance is optimal in various road conditions. With aluminum fenders and integrated LED strip tail lights, visibility and safety are prioritized. Inside, a 3/4″ plywood floor, painted underneath, provides a sturdy base for securing your load, while interior wall members spaced 16 inches on center contribute to the trailer’s enduring structural integrity. Before purchasing, it’s advisable to explore warranty options and compare manufacturers to avoid future regrets, ensuring that your investment in a 5×6 trailer is well-protected and wise.
Compact Size and Maneuverability
The 5×6 enclosed trailer is recognized for its compact dimensions that make it notably maneuverable, particularly when compared to larger trailer models. This design is ideal for individuals operating in spaces where size is a constraint, such as tight urban areas or congested sites. The smaller footprint doesn’t compromise on functionality but instead enhances the trailer’s ability to navigate diverse environments with ease. Its global popularity can be attributed to this comfortable size, allowing the trailer to adeptly handle a wide array of transportation scenarios. The practical design ensures ease of use in various settings, from busy city streets to narrow rural paths, making it an optimal choice for those seeking efficient, manageable transport solutions that won’t strain handling or parking efforts.
Versatility in Transport Needs
The 5×6 enclosed trailer is versatile, fulfilling varied transport requirements with ease. Its capacity to be customized with different features ensures that it can meet specific cargo transportation needs. Inside, spacious interiors allow for uncomplicated loading and unloading of various materials, enhancing productivity and ease of use. The inclusion of multiple D-ring tie-downs secures diverse cargo types during transit, safeguarding them from movement and potential damage. These trailers are engineered to endure daily operational rigors, protecting their contents from the elements and ensuring reliability no matter the conditions. Furthermore, flexible financing options are available, offering businesses the ability to manage and adapt to their unique transport needs economically. Whether for personal or professional use, the 5×6 trailer proves to be a resilient and adaptable transportation solution.
Buying New vs. Used Trailers
When it comes to purchasing a 5×6 enclosed trailer, one must weigh the options between buying brand-new or opting for a used model. New trailers promise pristine condition and access to the latest technological advancements, offering customization opportunities and manufacturer warranties. Conversely, used trailers present a cost-effective alternative, assuming they are well-maintained. The choice often depends on individual priorities such as budget constraints, the desire for contemporary features, and personal satisfaction with pre-owned charisma. Making the right decision involves assessing factors like warranty, customization, and financial considerations unique to each buyer.
Advantages of New Trailers
New trailers bring unmatched quality, providing you with a flawless start for your cargo transport needs. They incorporate the latest advancements in design and technology, ensuring efficient and up-to-date performance. Typically coming with full manufacturer warranties, new trailers not only offer peace of mind but also promise impeccable structural and electrical systems. Investing in a new 5×6 enclosed trailer assures confidence in the integrity and safety of your purchase, reducing concerns about potential repairs or hidden issues. Thus, new trailers appeal to those seeking reliability, modern features, and worry-free ownership.
Assessing Quality in Pre-Owned Trailers
Opting for a pre-owned trailer can be a wise decision if approached with due diligence. Conducting a comprehensive inspection of both the structure and electrical systems is crucial to determine the trailer’s condition. Engaging a professional for an unbiased assessment can further validate the trailer’s reliability, easing the concerns of potential issues down the road. A meticulous inspection allows buyers to detect wear or damage, essential for avoiding unforeseen repairs. Therefore, aligning the examination with your financial and personal preferences ensures that your purchase offers value for money, without compromising on safety and quality.
Budget Considerations
Budgetary considerations are a pivotal aspect of purchasing an enclosed cargo trailer. Financing options can offer interest rates as low as 7.74%, with same-day financing, making monthly payments feasible starting from $128.26. For those seeking affordability, trailers like the 5×8 Carry-On Enclosed Cargo Trailer offer significant cost savings, available at $3,099 compared to the original price of $3,699. Options ready for immediate pickup or delivery also present budget-friendly choices, enabling buyers to acquire trailers without extended delays. Moreover, customization possibilities allow customers to tailor trailers to their specific needs, all while maintaining fiscal prudence. Comparing materials, construction methods, and brand reputations against price points ensures that durability and craftsmanship align with your budgetary goals.
Researching Trailer Options
When looking for the perfect trailer, particularly a 5×6 enclosed trailer, it’s essential to weigh various factors to ensure the best choice is made. These compact, single axle enclosed trailers are ideal for transporting goods safely, thanks to their secure, weather-resistant design. The decision between new and used models hinges on elements such as warranty coverage, customization flexibility, and available features. New trailers often boast updated attributes and financing benefits, including same-day financing options. However, pre-owned models can offer potential savings and unique features at a lower price point. Carefully evaluating these elements, along with destination charges and purchase details, is crucial for maximizing satisfaction with your purchase. It’s also vital to consider the standard features, like radial tires, LED strip tail lights, and a steel frame with plywood wall liners, to assess the trailer’s value and functionality. Furthermore, custom features and options, such as a Tongue Jack or Leaf Spring Axle, can enhance the trailer’s utility, catering to specific personal or business needs.
Importance of Thorough Market Research
Understanding the market is fundamental when purchasing a 5×6 enclosed trailer. Thorough research into the available options ensures that buyers can make informed choices that best meet their requirements. The landscape for single axle enclosed trailers is diverse, providing multiple models and brands, each offering unique features and benefits. By examining these thoroughly, potential buyers can distinguish between brands, such as the Sure-Trac® Pro Series® Wedge Front Enclosed Cargo Trailer, known for its aerodynamic design and customizable options. Evaluating the pros and cons of new versus used models, the balance of features against price, and exploring financing options are crucial elements of effective market research. This approach aids in understanding the value offered by each trailer model, ensuring a smart investment tailored to individual hauling needs.
Utilizing Online Resources and Customer Reviews
In the modern era, the wealth of online resources available can greatly facilitate the trailer-buying process. Prospective buyers can access a plethora of information, including product FAQs, manuals, and brochures directly from brand websites. These resources present a clear picture of what to expect concerning trailer specifications, customization options, and warranty details. Additionally, customer reviews play a pivotal role in shaping prospective buyers’ decisions, with a robust collection of over 10,000 ratings highlighting a high level of satisfaction. Reviews typically score an impressive 4.8 out of 5, demonstrating the general satisfaction with products and services.
Furthermore, online platforms often offer financing options to relieve the upfront financial burden, featuring competitive interest rates starting at 7.74% and no penalties for early payoff. Detailed product information is readily accessible, enhancing the ability of buyers to customize their trailers to suit precise needs. Technologies like online configurators are particularly useful, allowing potential buyers to experiment with trailer configurations according to their preferences. This ability to tailor a trailer before purchase enhances the overall buying experience, ensuring customers can fully align the product with their specific needs and expectations.
Highlighted Trailer Models
Enclosed trailers have become an indispensable asset for various transportation needs, offering sizes like 5×10, 6×10, 6×12, and 7×14 to suit diverse purposes. Among these, the 5×6 enclosed trailer stands out for its compact design, allowing for nimble navigation and versatile usage. Known for their security and ability to protect cargo from harsh weather, these trailers are a preferred choice for individuals and businesses alike. Customization options, which include shelving and flooring upgrades, further enhance their functionality. Additionally, top manufacturers such as ATC, Homesteader, and Cargo-Pro provide a broad selection of new and used trailers, ensuring both quality and variety for consumers looking to meet their specific transportation needs.
Pro Series Wedge Front Enclosed Cargo Trailers by Sure-Trac
The Pro Series Wedge Front Enclosed Cargo Trailer by Sure-Trac is engineered to deliver superior cargo security with its robust locking system. Constructed using high-quality materials, it is designed to defend your goods against various external threats encountered on the road. Enhanced with integrated LED lighting, this trailer ensures excellent visibility during low-light conditions, making it highly convenient for users. Buyers can select from a range of customizable options, allowing for configurations that include different sizes or additional features like shelving and flooring upgrades. The Sure-Trac Wedge Front Enclosed Cargo Trailer is available in multiple models, particularly 6×12 and 6×10 sizes, catering to different transport needs while maintaining the highest standards of protection and durability.
Features and Model Options
Enclosed trailers are engineered to offer superior protection from inclement weather while ensuring the security and privacy of your items. One popular model, the 5×6 trailer, balances size and utility, making it ideal for transporting goods or serving as mobile storage. Designed with LED clearance and tail lights, these trailers ensure visibility and safety on the road. Built with tube frame construction and lined with plywood flooring and walls, they guarantee durability and resilience. Single axle versions, like the 5×6 enclosed trailer, come with options such as rear ramps or single barn doors to simplify loading and unloading. To further cater to specific hauling requirements, these models also boast customization options, including spring suspension systems and a two-year limited nationwide warranty, offering peace of mind and reliability across varying demands.
Interstate LoadRunner Trailers in Oklahoma City
In Oklahoma City, the Interstate LoadRunner Trailers are widely available as compact 5×6 enclosed cargo trailers. Known for their robust construction, these trailers emphasize durability and meet a variety of hauling needs. With prices listed around $3719 or as high as $4019, these trailers are accessible and highlight potential price variances based on configurations and features. It’s important to note that these prices exclude taxes and additional state or local licensing fees, which may apply. Offering both quality and affordability, the Interstate LoadRunner Enclosed Cargo Trailers represent a solid choice for consumers seeking reliable transport solutions. Their sturdy design and attention to customer support reflect a commitment to addressing the practical requirements of everyday hauling.
Customization and Financing
Purchasing an enclosed trailer can be a significant investment, and tailoring it to meet specific hauling requirements and financial needs is essential. Whether you’re looking to add custom features to enhance your trailer’s functionality or seeking financial solutions to make the purchase more affordable, options are available to accommodate these needs. Enclosed trailers offer a variety of customization options that allow you to modify size, color, and internal features, ensuring your trailer meets your exact specifications. Additionally, financing solutions are designed to cater to different budget levels, providing flexibility with competitive rates and beneficial payment plans.
Customization Options
When it comes to customization options for enclosed trailers, the possibilities are vast. Trailers can be outfitted with additional height to allow for larger cargo or unique loads and a range of colors to match personal or business aesthetics. The color palette includes striking choices such as Electric Blue and sophisticated hues like Matte Black and Sahara Desert. Inside, the trailers can be equipped with versatile accessories and cargo management tools for optimized storage and ease of use. For those seeking more premium modifications, the Pro Series trailers offer upgrades like superior flooring materials and customized shelving installations. This extensive range of customizable features ensures that each trailer can be tailored to fit specific needs, providing a personalized vehicle that meets both functional and aesthetic demands.
Exploring Same-Day Financing Opportunities
Financing an enclosed cargo trailer has never been more accessible, with same-day financing options readily available for a wide array of trailer types, including utility trailers and equipment trailers. These financial solutions come with competitive interest rates starting as low as 7.74%, making them an attractive option for prospective buyers. Importantly, the financing plans offer flexibility with no penalties for early payoff, allowing customers to settle their loans at their convenience. Monthly installment plans, starting at $128.26, help to bridge financial gaps, making it easier to manage budget constraints and afford the necessary transportation tools. Prospective buyers can find detailed information on these financing options through specialized services, ensuring they select a plan that best aligns with their financial needs while securing the trailer that meets their logistical requirements.
Next Up>>> 5 x 8 Enclosed Cargo Trailer
